Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

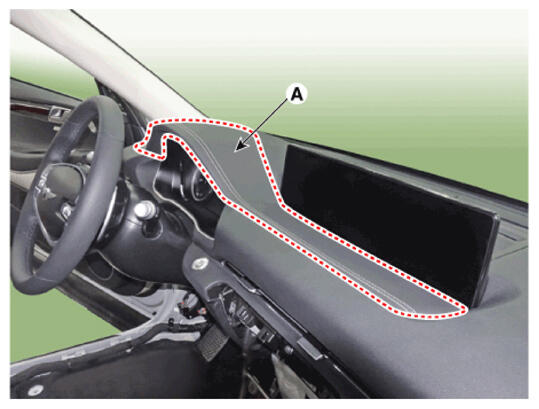

  2. Remove the cluster fascia upper garnish (A).
    G16774412Courtesy of HYUNDAI MOTOR AMERICA

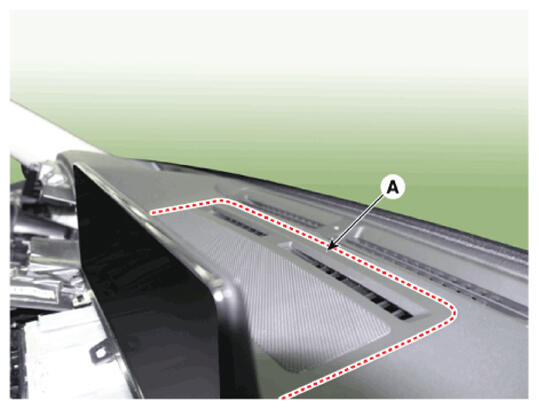

  3. Remove the crash pad upper garnish (A).
    G16774413Courtesy of HYUNDAI MOTOR AMERICA

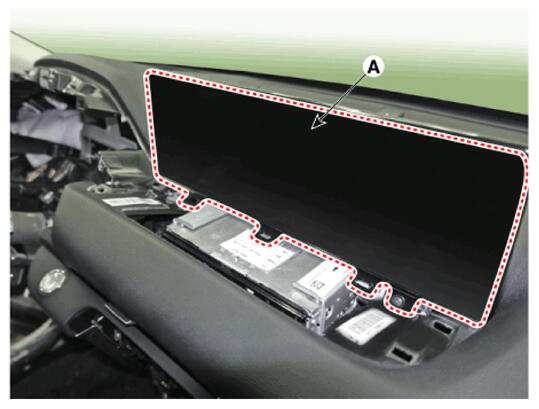

  4. Remove the front monitor (A) after loosening mounting screws.
    G16774414Courtesy of HYUNDAI MOTOR AMERICA

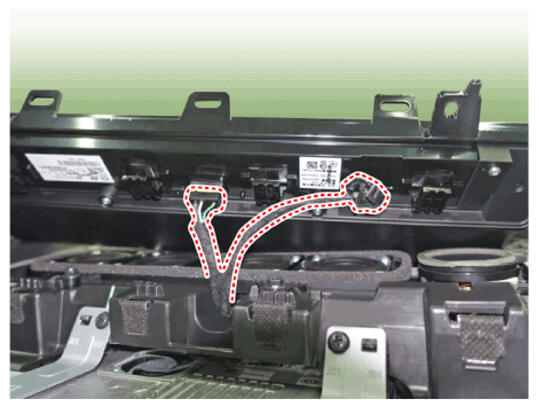

  5. Disconnect the monitor connector and then remove the front monitor.
G16774415Courtesy of HYUNDAI MOTOR AMERICA
