Repair Procedures: Replacement

CAUTION:

Take care not to bend or scratch the trim and panels.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Disconnect the negative (-) battery terminal.
Remove the rear console assembly.
(Refer to Body (Interior and Exterior) - "REAR CONSOLE ASSEMBLY ")

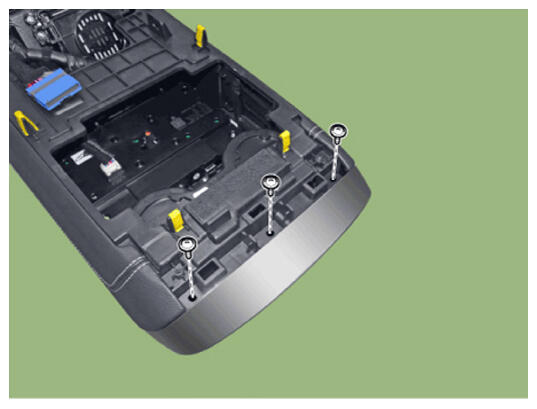

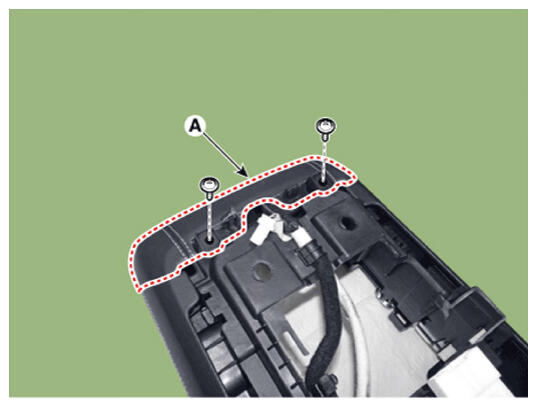

Loosen the mounting screws and remove the rear console upper assembly rear cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

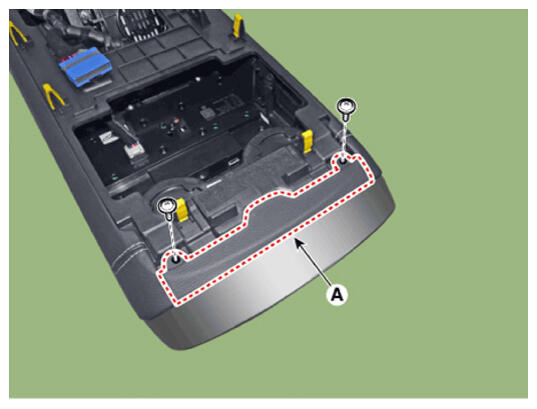

Loosen the mounting screws and remove the rear console upper assembly lower cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

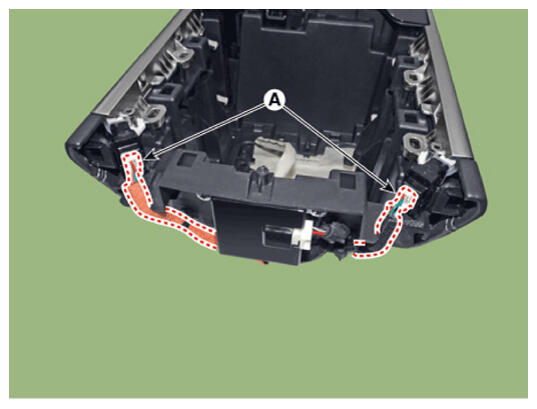

Disconnect the mood lamp connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

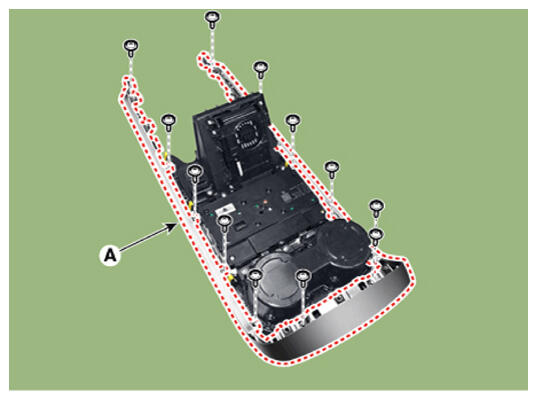

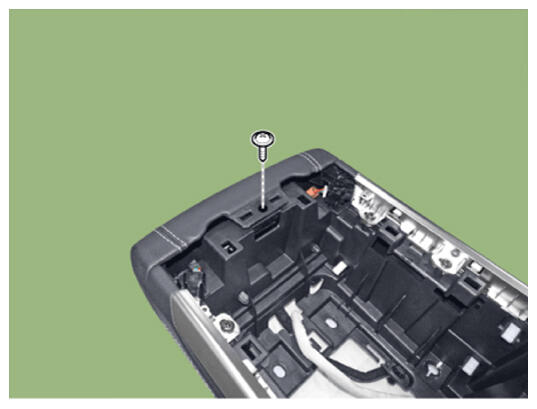

Loosen the mounting screws and remove the rear console upper garnish assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

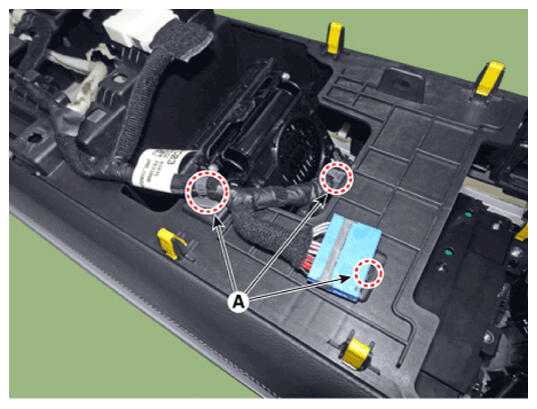

Remove the mounting clips (A).

Courtesy of HYUNDAI MOTOR AMERICA

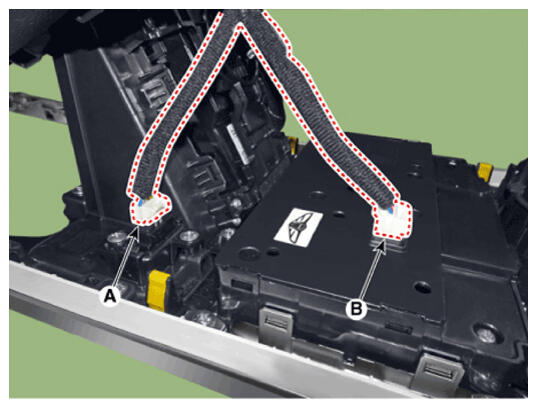

Disconnect the wireless charging lamp connector (A) and rear integrated controller connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

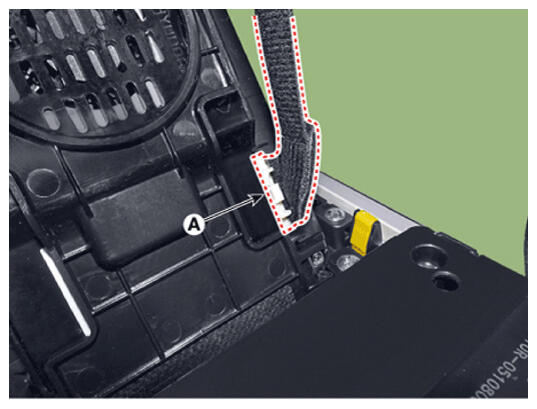

Disconnect the wireless charging unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws and remove the rear console mood lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

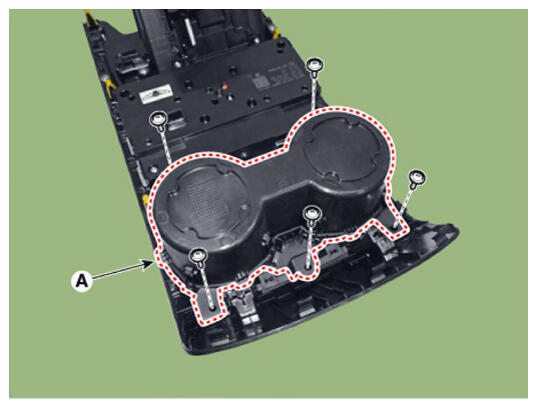

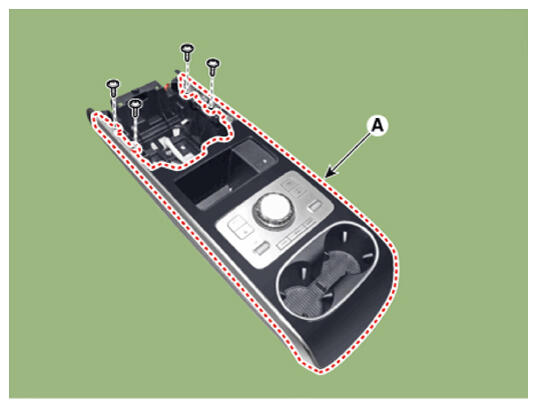

Loosen the mounting screws and remove the rear console cup holder (A).

Courtesy of HYUNDAI MOTOR AMERICA

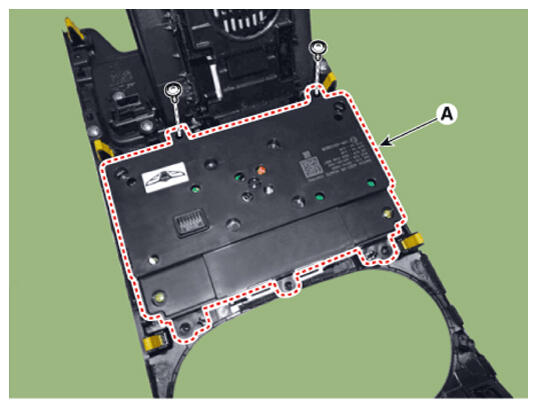

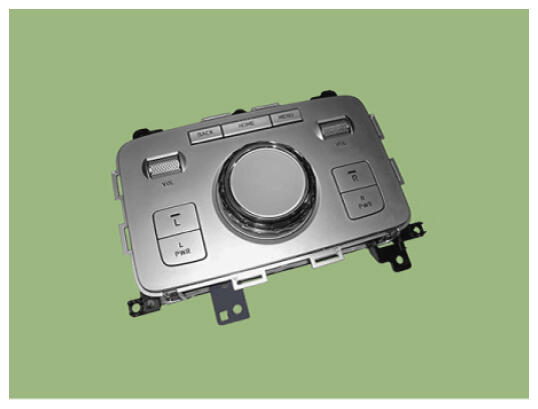

Loosen the mounting screws and remove the rear integrated controller (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
