Removal
›
Door Outside Handle
Door Outside Handle
Disconnect the negative (-) battery terminal.

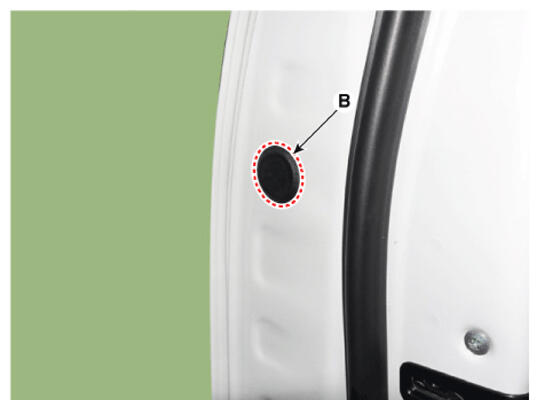

Loosen the mounting bolt after remove the plug hall (A). And then push the outside handle (B) in the direction of arrow as illustration below.
Courtesy of HYUNDAI MOTOR AMERICA

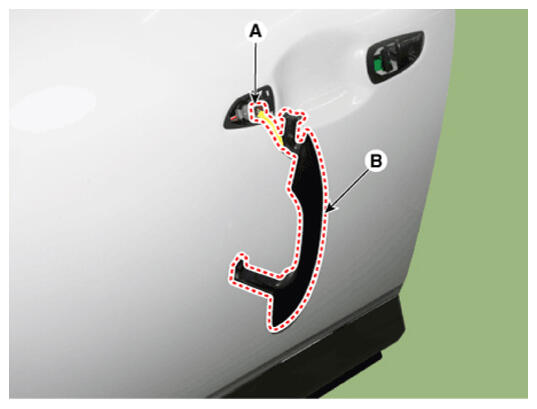

Disconnect the outside handle connector (A) and then remove the door outside handle (B).
Courtesy of HYUNDAI MOTOR AMERICA
