FOB Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

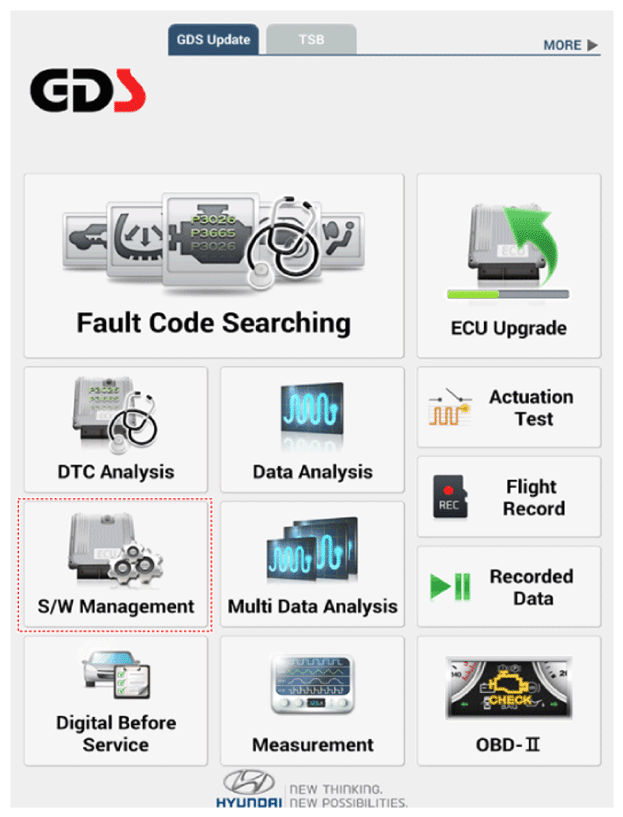

  2. Select the 'S/W Management' and 'Car model'.
    G16774445Courtesy of HYUNDAI MOTOR AMERICA

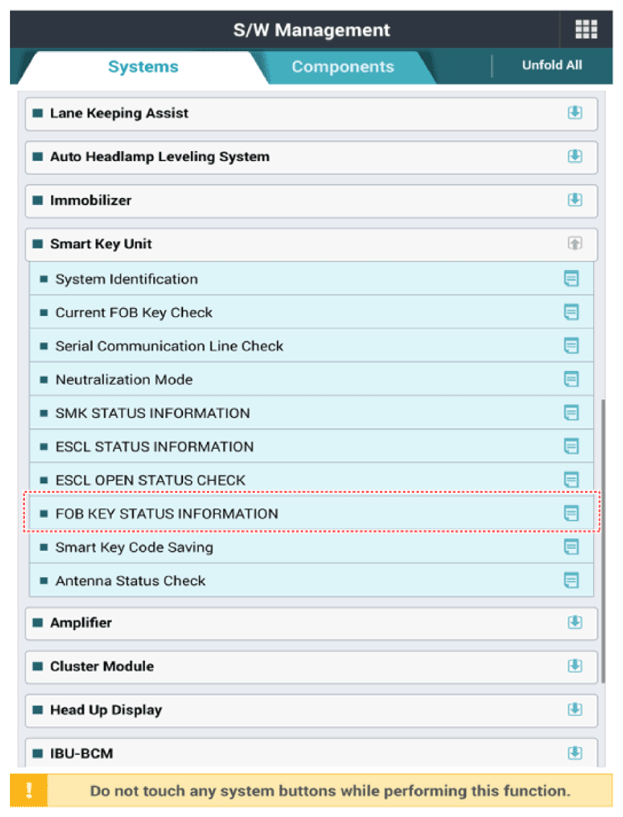

  3. Select the 'Smart Key Unit' and 'FOB KEY STATUS INFORMATION'.
G16774446Courtesy of HYUNDAI MOTOR AMERICA

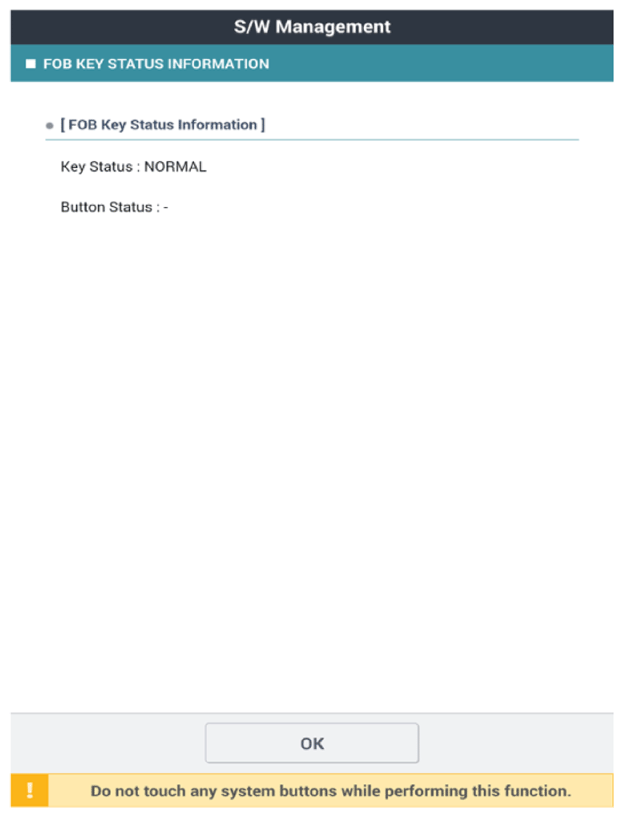

G16774447Courtesy of HYUNDAI MOTOR AMERICA
