Driver Power Seat Module

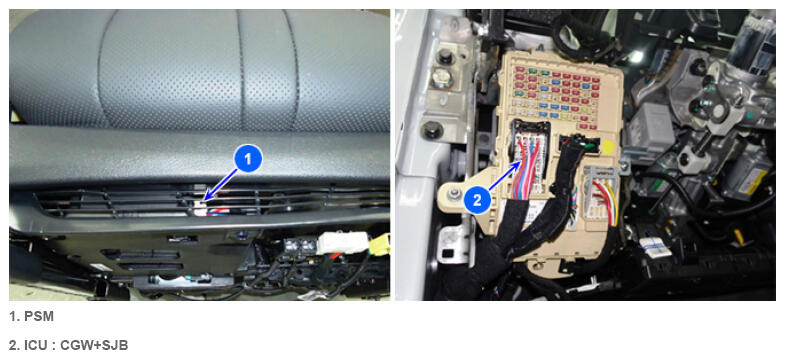

PSM* controls the position adjustment of Driver Seat by the manual seat switch or IMS*. And it is connected to ICU* to form B-CAN network of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| PSM* | "DRIVER POWER SEAT MODULE" | Driver Power Seat Module | SD200-6 |
| ICU* | → "ICU JUNCTION BLOCK" | → [CGW+SJB] Integrated Central control Unit | |
| CGW | → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" | → Central GateWay | |
| SJB | → "ICU JUNCTION BLOCK" | → Smart Junction Block | |
| IMS* | Integrated Memory System | ||
