Components And Components Location: Components

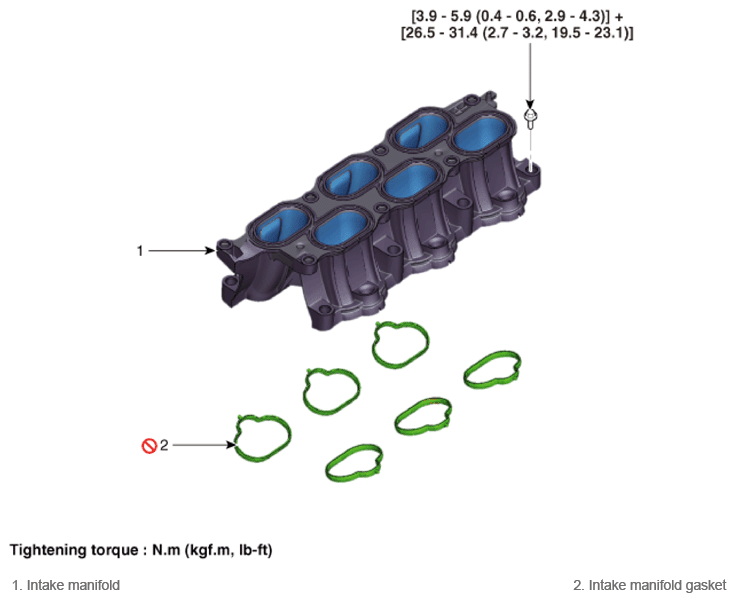

Fig 1: Intake Manifold Components Location With Torque Specification
G16776484Courtesy of HYUNDAI MOTOR AMERICA
