Home › Genesis › 2024 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 3.5L › Surge Tank › Components And Components Location › Components

Components And Components Location: Components

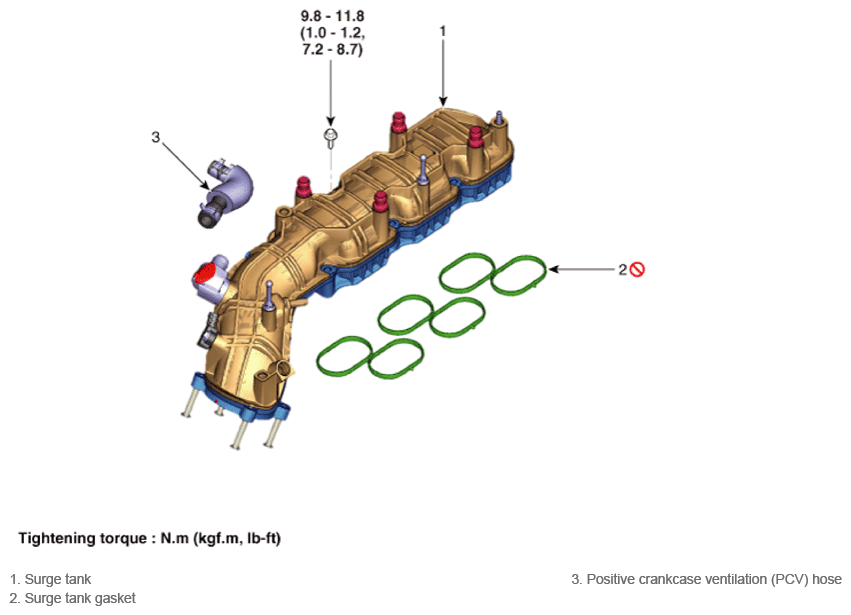

Fig 1: Surge Tank Components Location With Torque Specification
G16776464Courtesy of HYUNDAI MOTOR AMERICA
