Repair Procedures: Disassembly

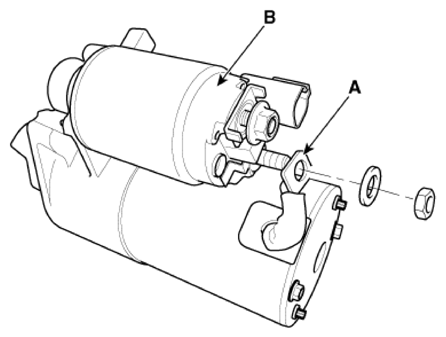

Remove the M-terminal (A) on the magnetic switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

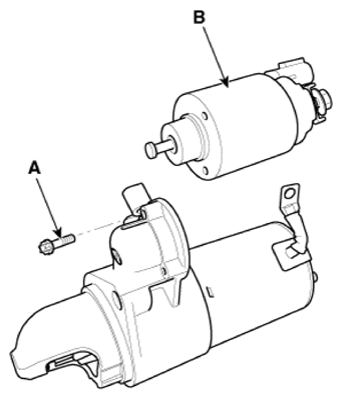

After loosening the screws (A), remove the magnetic switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

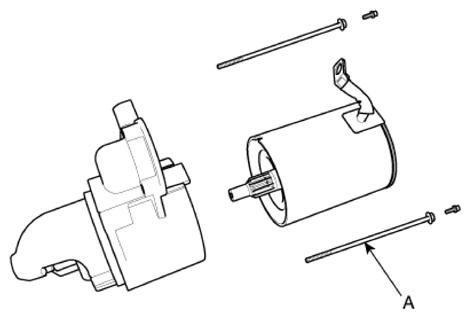

Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

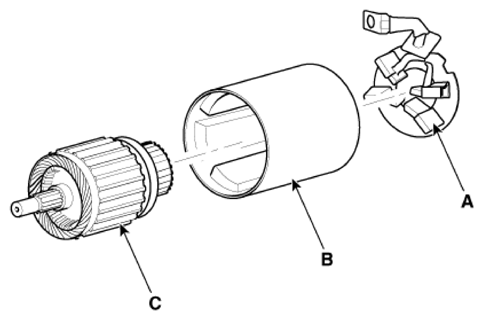

Remove the brush holder assembly (A), york assembly (B) and armature assembly (C).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shield (A) and packing (B).

Courtesy of HYUNDAI MOTOR AMERICA

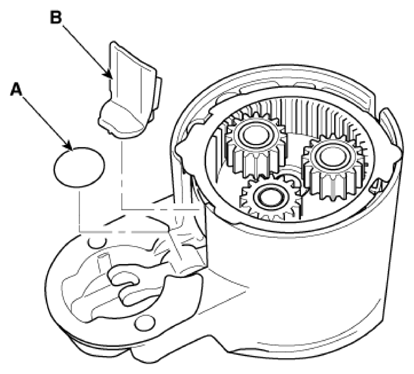

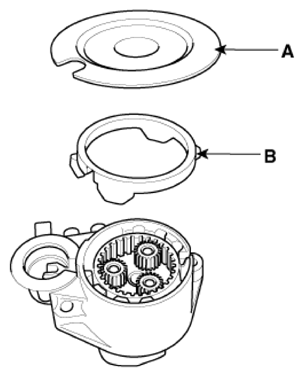

Remove the lever plate (A) and lever packing (B).

Courtesy of HYUNDAI MOTOR AMERICA

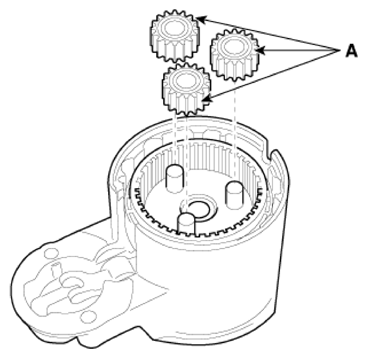

Remove the planet gear (A).

Courtesy of HYUNDAI MOTOR AMERICA

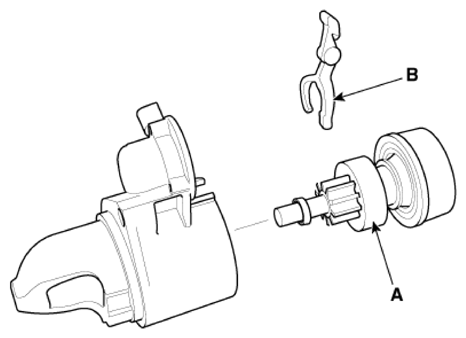

Remove the planet gear shaft assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA

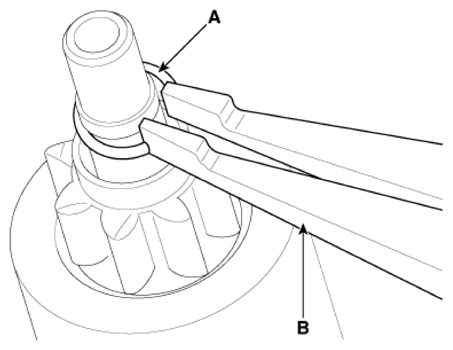

Remove the stop ring (A) using the stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

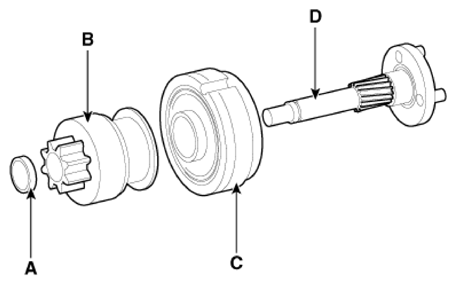

Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

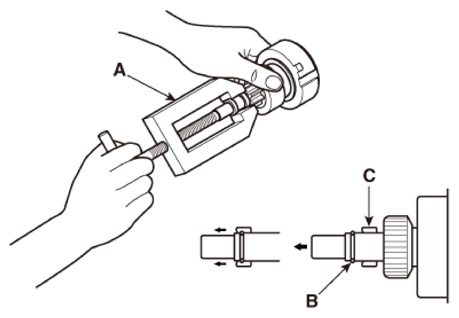

Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Courtesy of HYUNDAI MOTOR AMERICA
