Repair procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the cowl top cover.
(Refer to Body - "Cowl Top Cover")
- Remove the partition wall (RH).

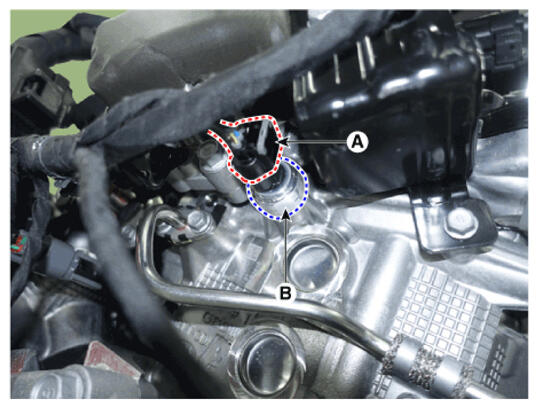

- Disconnector the oil pressure and oil temperature sensor connector (A).
- Remove the oil pressure and oil temperature sensor (B).
Tightening torque: 31.4 ~ 38.2 N.m (3.2 ~ 3.9 kgf.m, 23.1 ~ 28.2 lb-ft)
