[TPS 2]

Item Duty (%) Output Voltage (V) [Supply power = 5V]
C.T 88.5 - 91.5% 4.43 - 4.58
W.O.T 2 - 10% 0.1 - 0.5

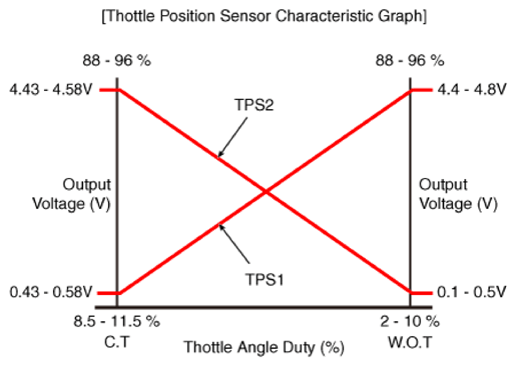

G16776703Courtesy of HYUNDAI MOTOR AMERICA
