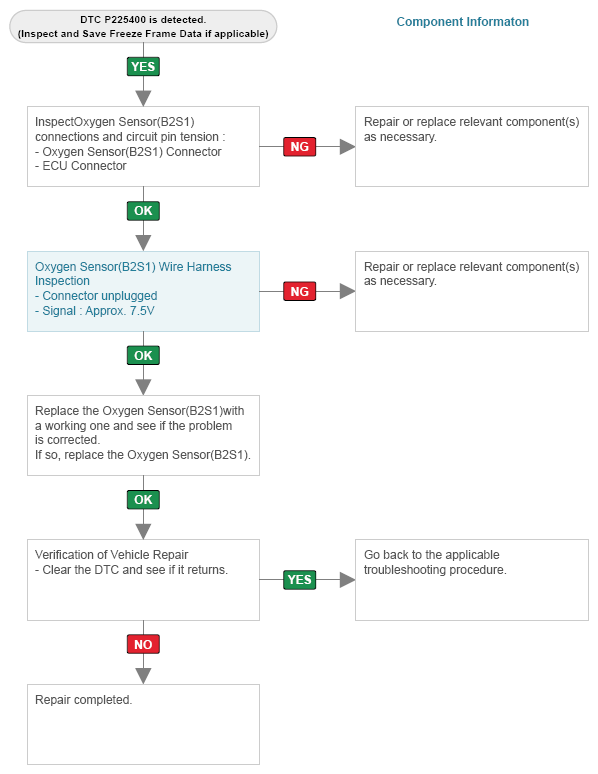

Home › Genesis › 2024 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis - 3.5L (8 Of 9) › DTC P2254-00: O2 Sensor Negative Current Control Circuit/Open Bank 2 Sensor 1 › Troubleshooting › Diagnostic Flowchart
