Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

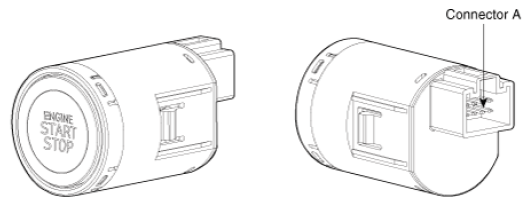

Connector A	No	Description	No	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	SSB switch1 (OUT)	6	Ground
	2	-	7	SSB switch 2
	3	SSB illumination (+)	8	SSB illumination (-)
	4	Immobilizer power	9	-
	5	-	10	Immobilizer power
