Console Armrest: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the console upper cover assembly.
Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

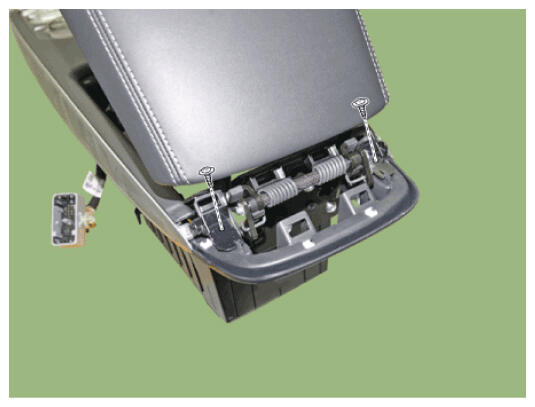

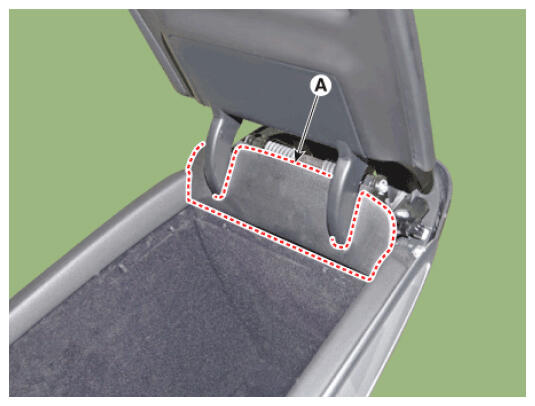

- Remove the rear console upper cover (A).
Information

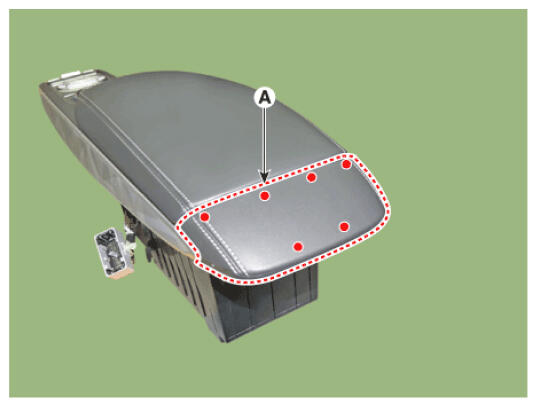

- Loosen the mounting screws, remove the console armrest cover (A).

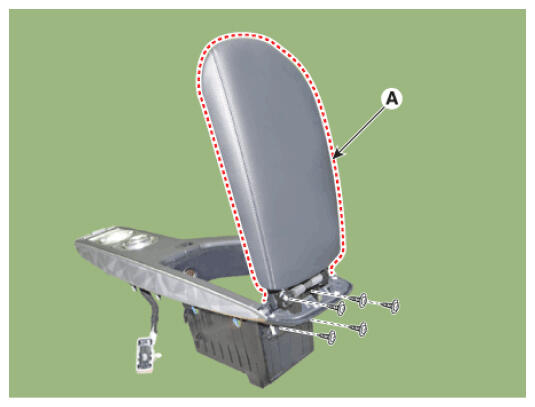

- Loosen the mounting screws, remove the console armrest (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
