Floor Console Assembly: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.

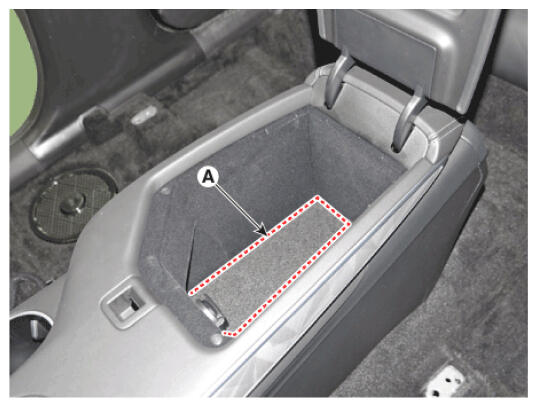

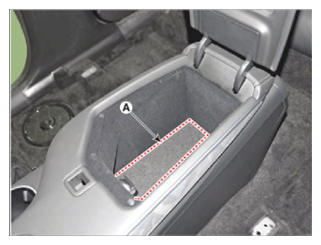

- Remove the console armrest mat (A).

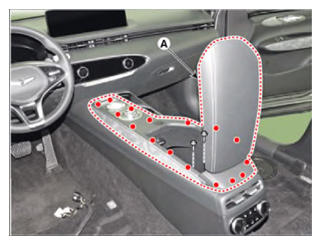

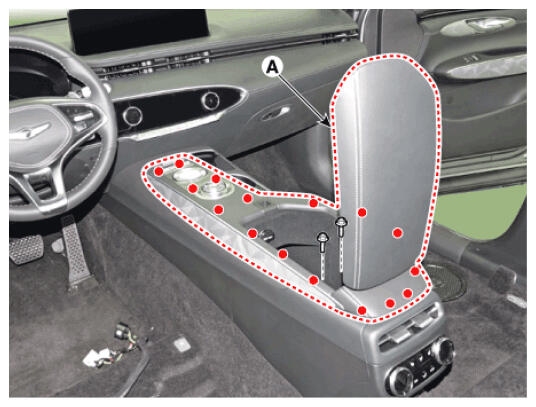

- Loosen the mounting bolts, remove the console upper cover assembly (A).
Information

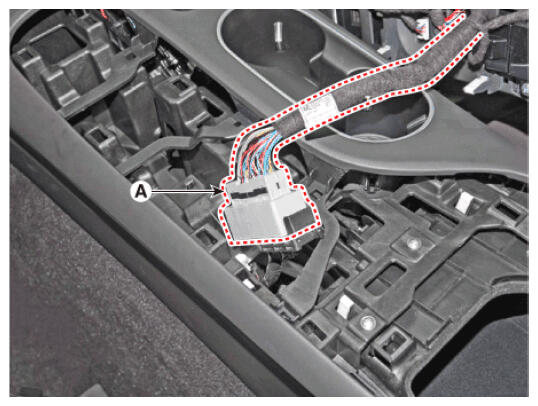

- Disconnect the console upper cover connector (A).

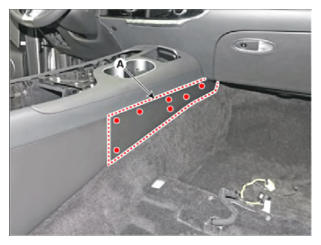

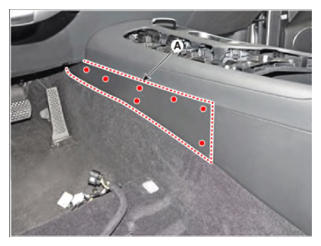

- Remove the console side cover (A).

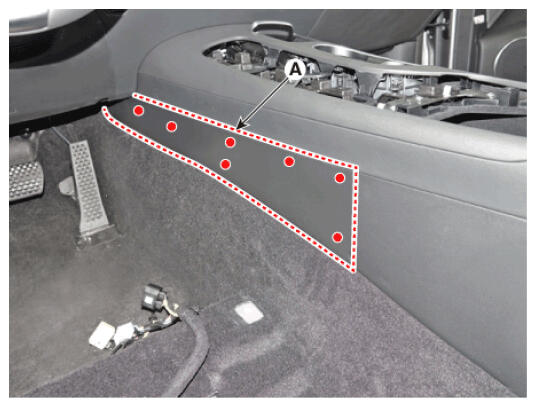

[LH]
Information

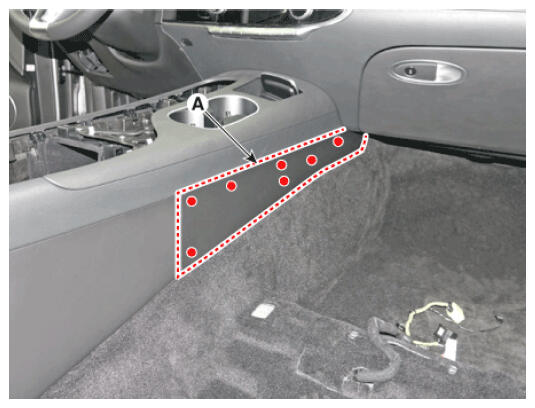

[RH]
Information

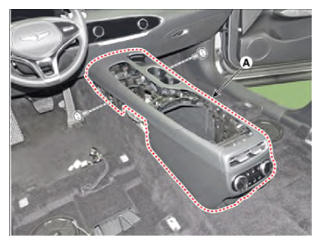

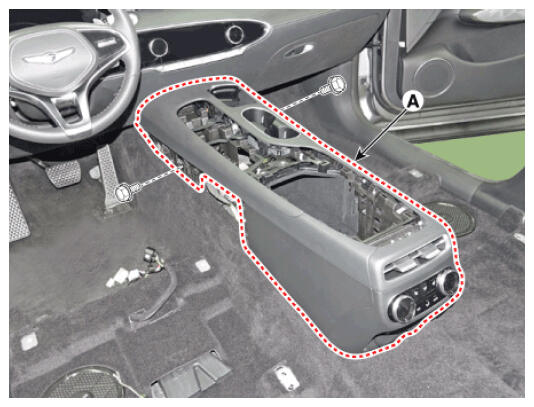

- Loosen the mounting bolts, remove the floor console assembly (A).

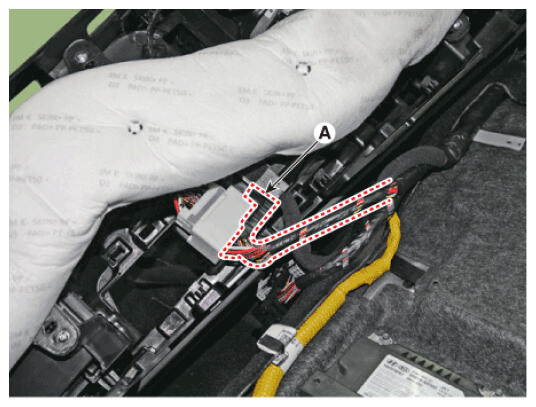

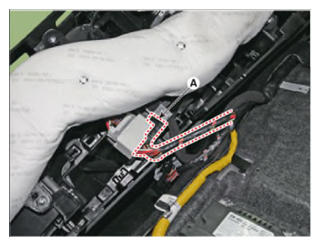

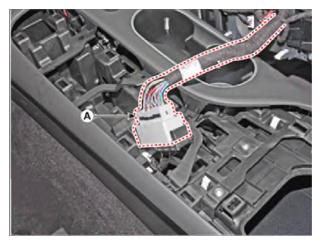

- Disconnect the floor console main connector (A).
- To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
