Front Seat Shield Inner Cover: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

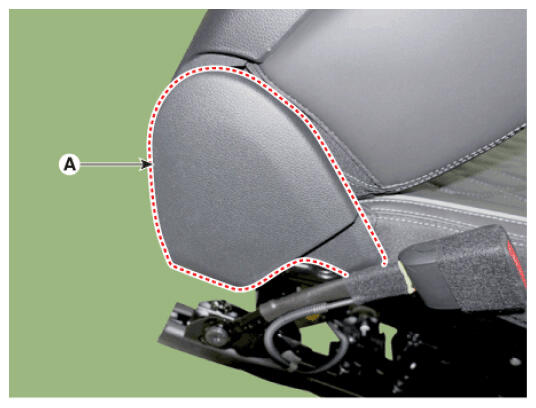

- Remove the front seat shield inner cover (A).
- To install, reverse removal procedure.
