Removal And Installation: Removal
- Remove the negative (-) battery terminal.
- Remove the front seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

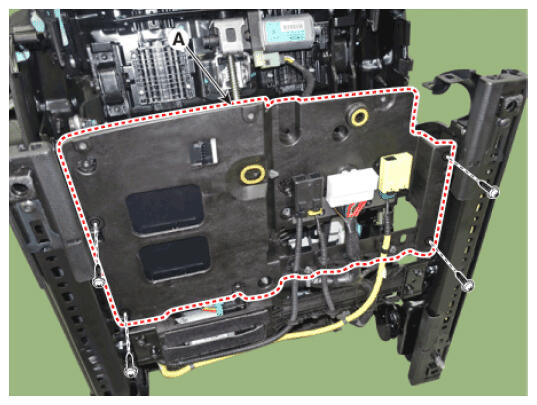

- Remove the seat lower cover (A) after loosening mounting screws.

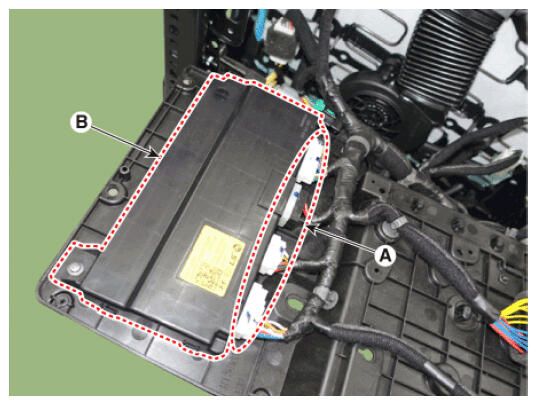

- Disconnect the IMS unit connectors (A).
