Removal And Installation: Removal

1. Remove the front bumper assembly.

   (Refer to Body - "FRONT BUMPER ASSEMBLY ")

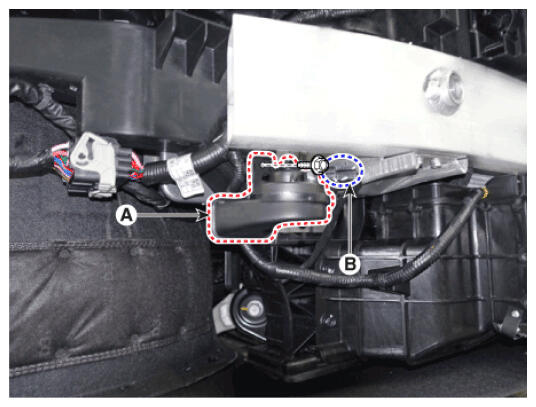

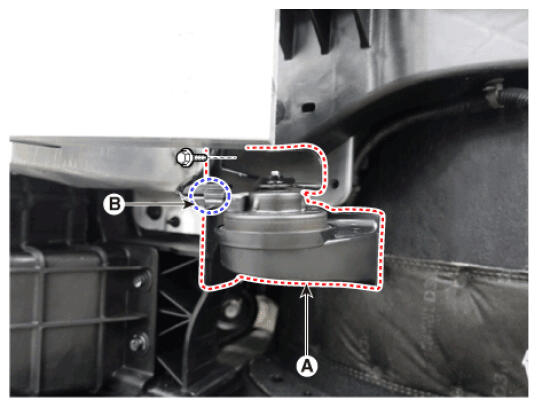

2. Remove the horn (A) after loosening mounting bolt and disconnecting horn connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
