Home › Genesis › 2025 › GV70 2.5T Advanced › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System - 2.5L › Components And Components Location › Components

Components And Components Location: Components

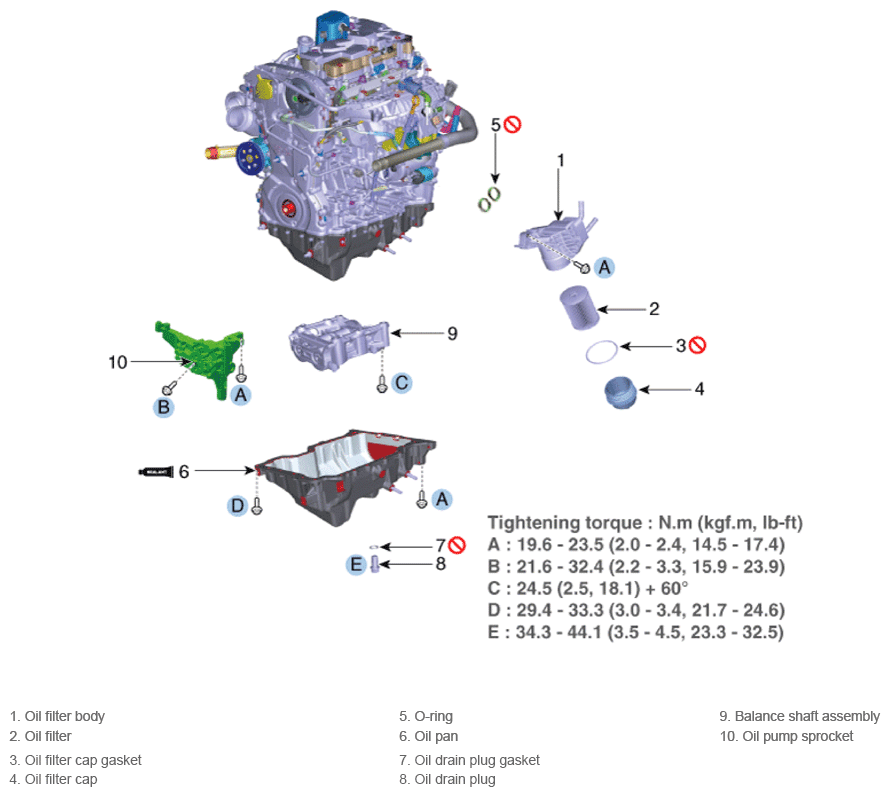

Fig 1: Lubrication System Components Location With Torque Specifications
G16846570Courtesy of HYUNDAI MOTOR AMERICA
