Camshaft Position Sensor (CMPS) [Bank 1/Intake]

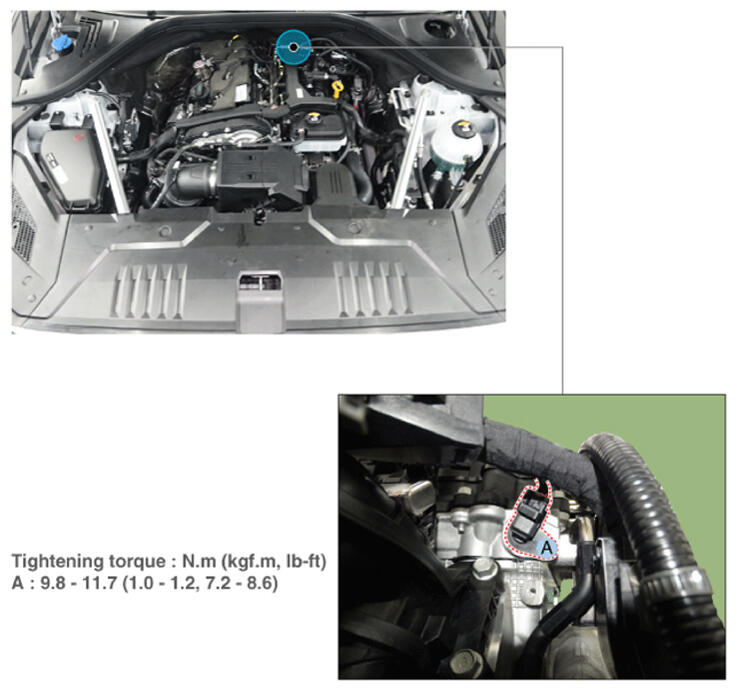

Fig 1: Camshaft Position Sensor Components Location With Torque Specifications (Bank 1 / Intake)
G16846938Courtesy of HYUNDAI MOTOR AMERICA
