ETC (Electronic Throttle Control) System
›
Components And Components Location
Components And Components Location

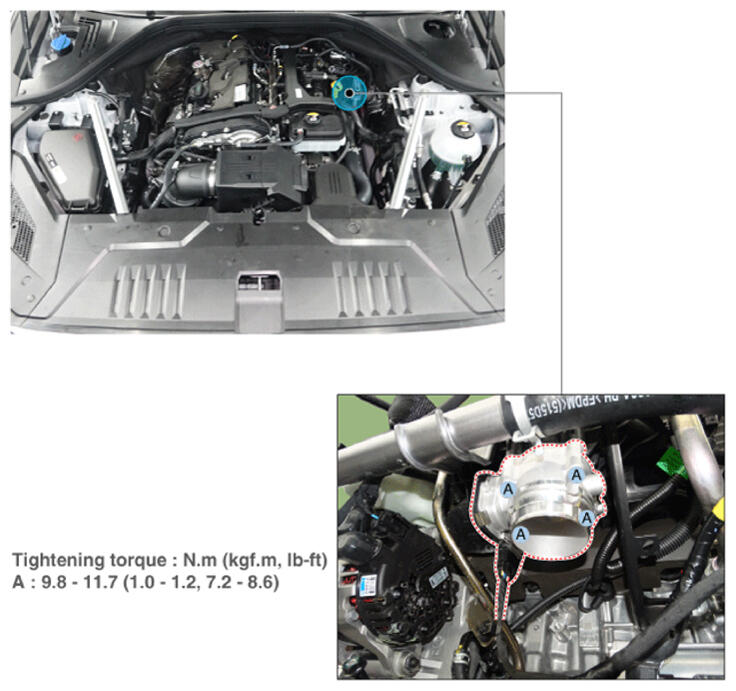

Fig 1: Electronic Throttle Control System Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
