Engine Coolant Temperature Sensor (ECTS) #1 - Water temperature control assembly side

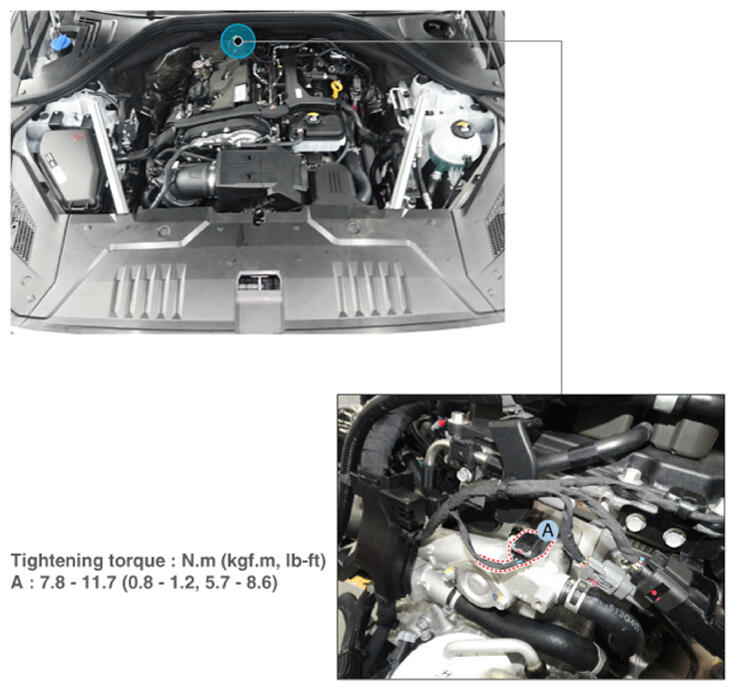

Fig 1: Engine Coolant Temperature Sensor #1 Components Location With Torque Specifications - Water Temperature Control Assembly Side
G16846924Courtesy of HYUNDAI MOTOR AMERICA
