Intake Air Temperature Sensor (IATS)
›
Components And Components Location
Components And Components Location

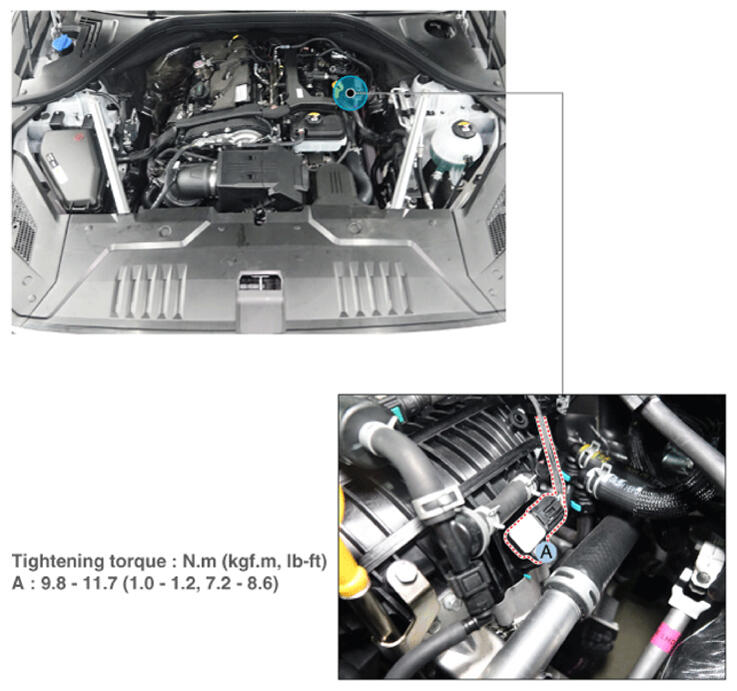

Fig 1: Intake Air Temperature Sensor Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
