Engine Control System - 2.5L
›
Variable Force Solenoid (VFS)
›
Components And Components Location
Components And Components Location

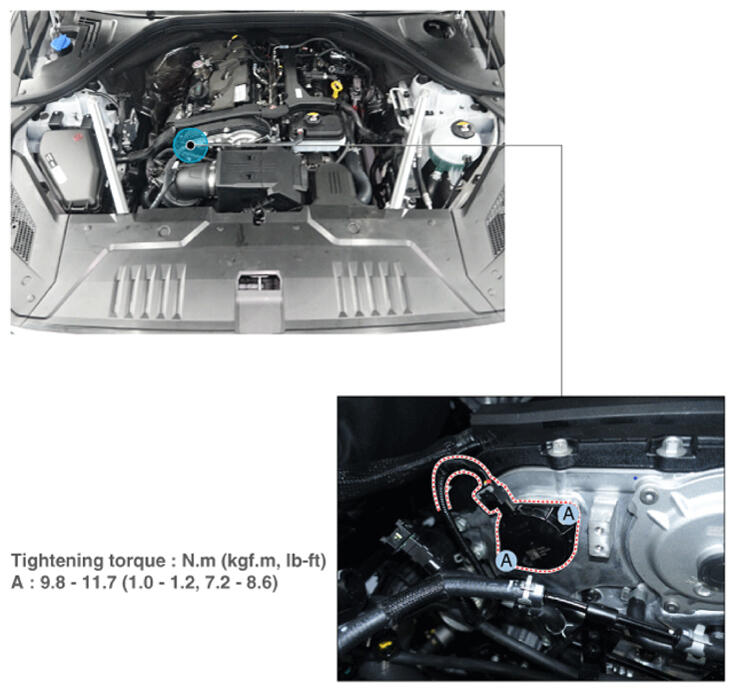

Fig 1: Variable Force Solenoid Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
