Monitor Current Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Monitor following parameters in "Current Data" with GDS.

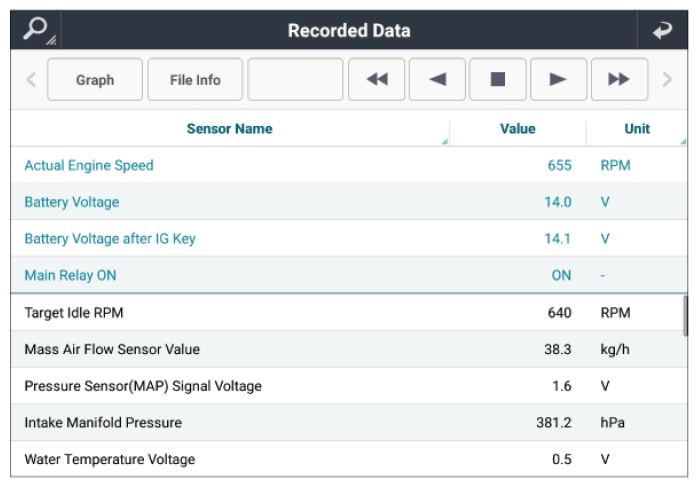

    Specification  : Refer to figure shown below

G16858026Courtesy of HYUNDAI MOTOR AMERICA
