Side Airbag (SAB) Module: Removal
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.
- Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

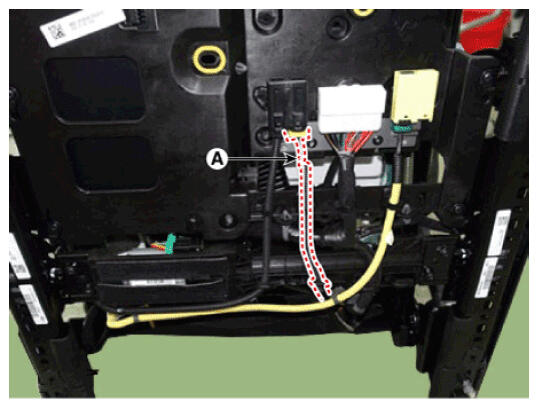

- Remove the side airbag wiring (A) after removing the side airbag wiring clips.

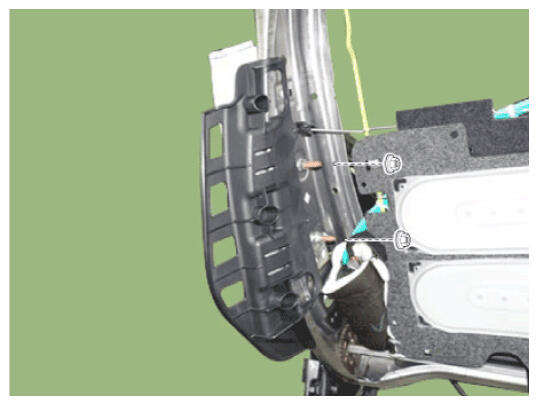

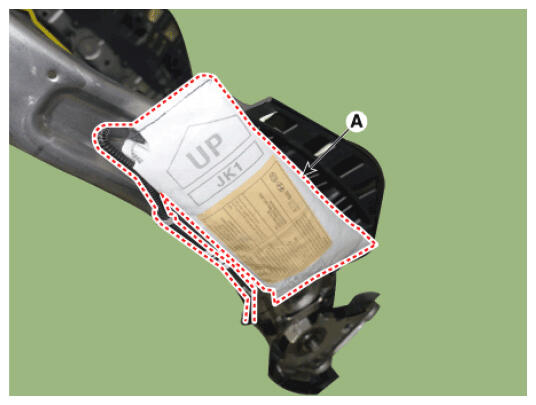

- Remove the side airbag module (A) after removing the nuts.
Tightening torque:
5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb-ft)
