Front Strut Assembly: Disassembly

Information

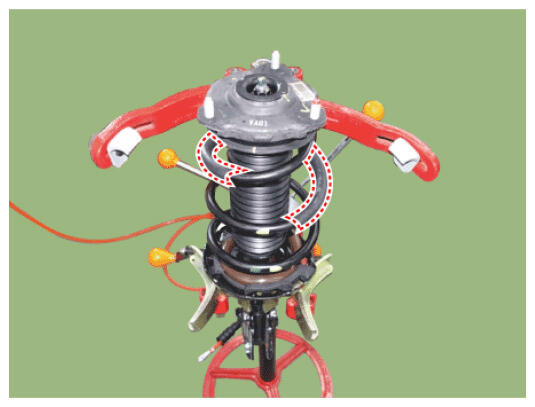

• When compressing the coil spring, be cautious as there may be corrosion due to damage to the coil spring painting.

  In order to avoid such painting damage, compress by putting over the waste hose, etc. (Refer to the illustration below.)

Courtesy of HYUNDAI MOTOR AMERICA

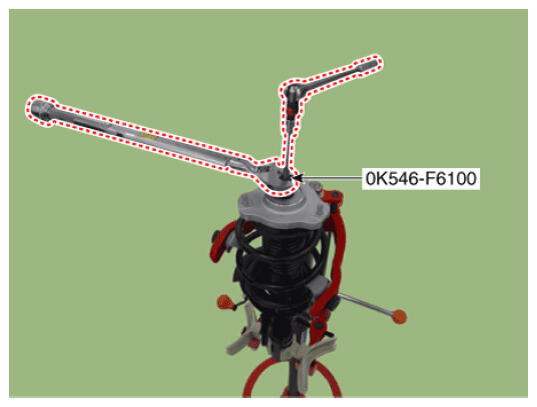

1. Using the SST (0K546-F6100), loosen the lock nut.

   Tightening torque:

   117.7 - 127.5 N.m (12.0 - 13.0 kgf.m, 86.8 - 94.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

2. Gradually turn the bolt on the spring compressor to slowly release the tension from the spring. Then, disconnect the components.
3. To Reassembly, reverse the disassembly procedures.
