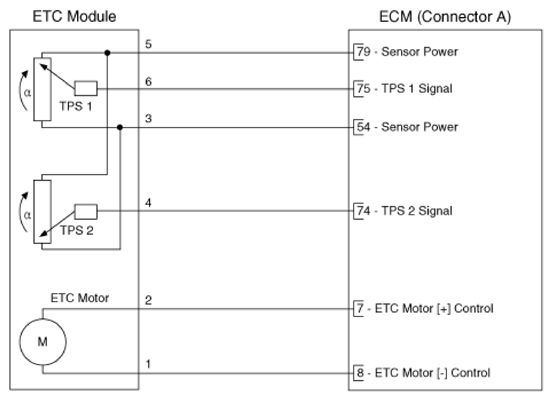

Home › Genesis › 2025 › GV70 2.5T › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › ETC (Electronic Throttle Control) System › Schematic Diagrams › Circuit Diagram
