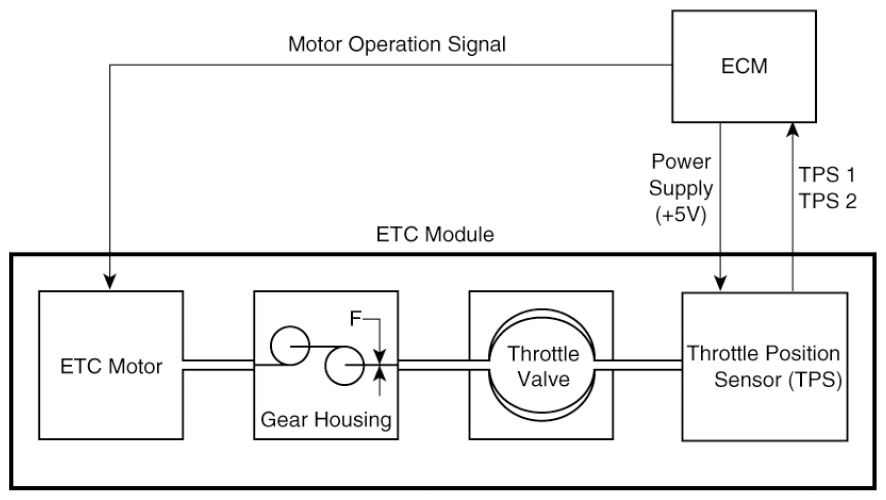

Home › Genesis › 2025 › GV70 3.5T Sport Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.5L › ETC (Electronic Throttle Control) System › Schematic Diagrams › Schematic Diagram
