Chart A-1, No Check Engine Light
›
Tests W/Codes
›
Diagnostic Aids
Diagnostic Aids
If CHECK ENGINE light will not illuminate, check for faulty bulb or an open circuit in Violet wire.

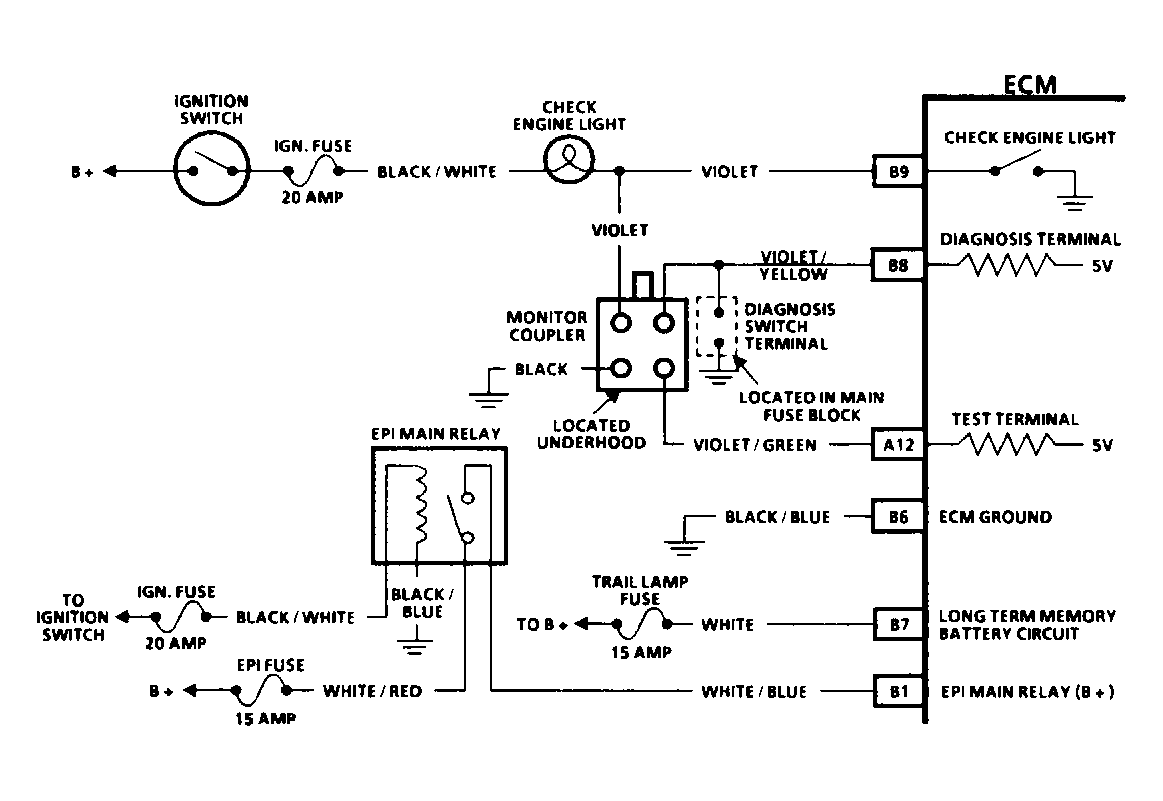

Fig 1: Chart A-1 Circuit Diagram

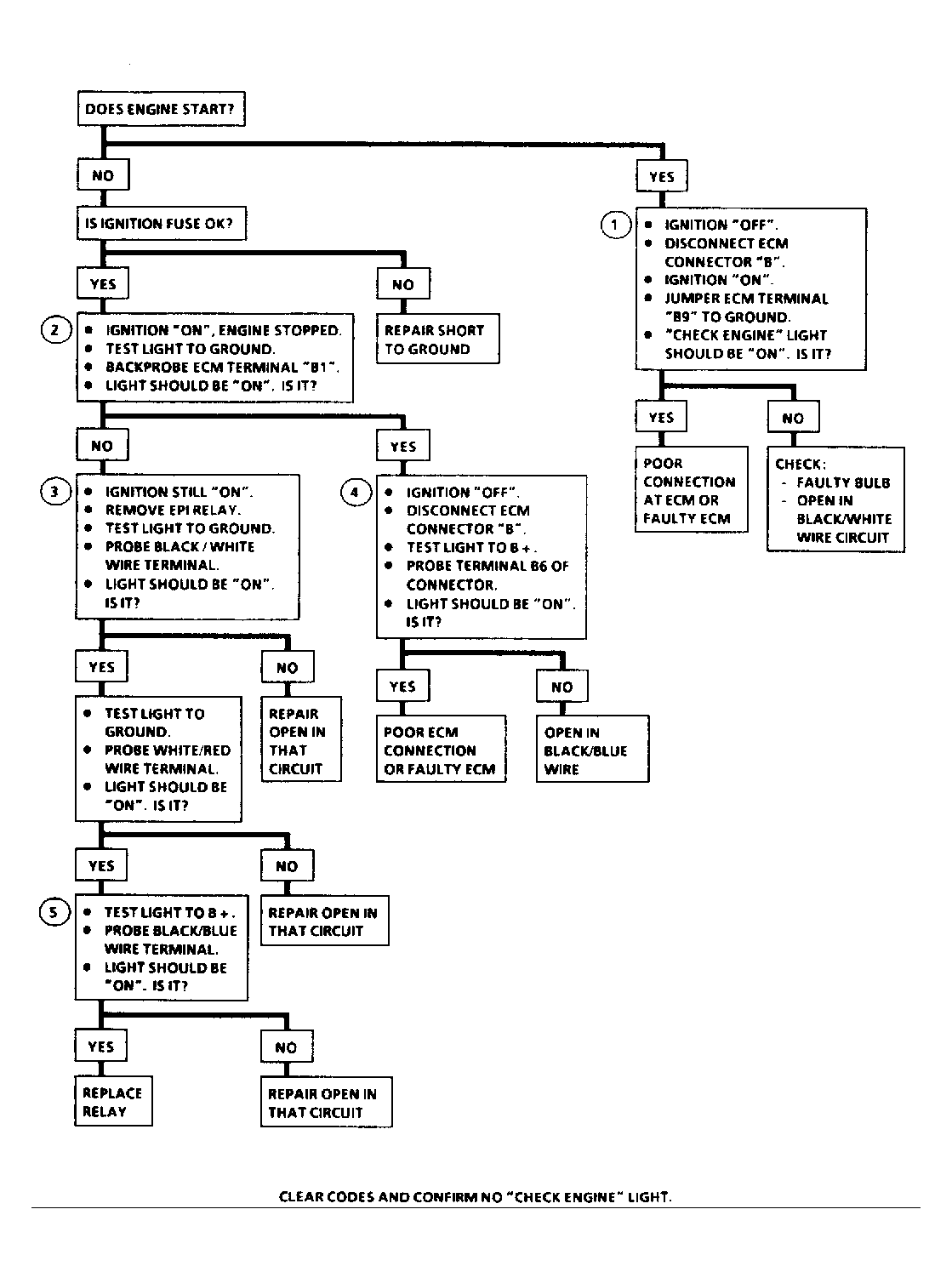

Fig 2: Chart A-1 Flow Chart
