EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 90-275-6E

SERVICE MANUAL UPDATE-SEC.6E2 - TERMINAL END VIEW REVISION

Model(s): 1989-90 Geo Metro W/1.0L (VIN CODE 6) Engine

Bulletin No.: Chevrolet 90-275-6E

Date: 06/03/1990

BULLETIN ILLUSTRATION LIST

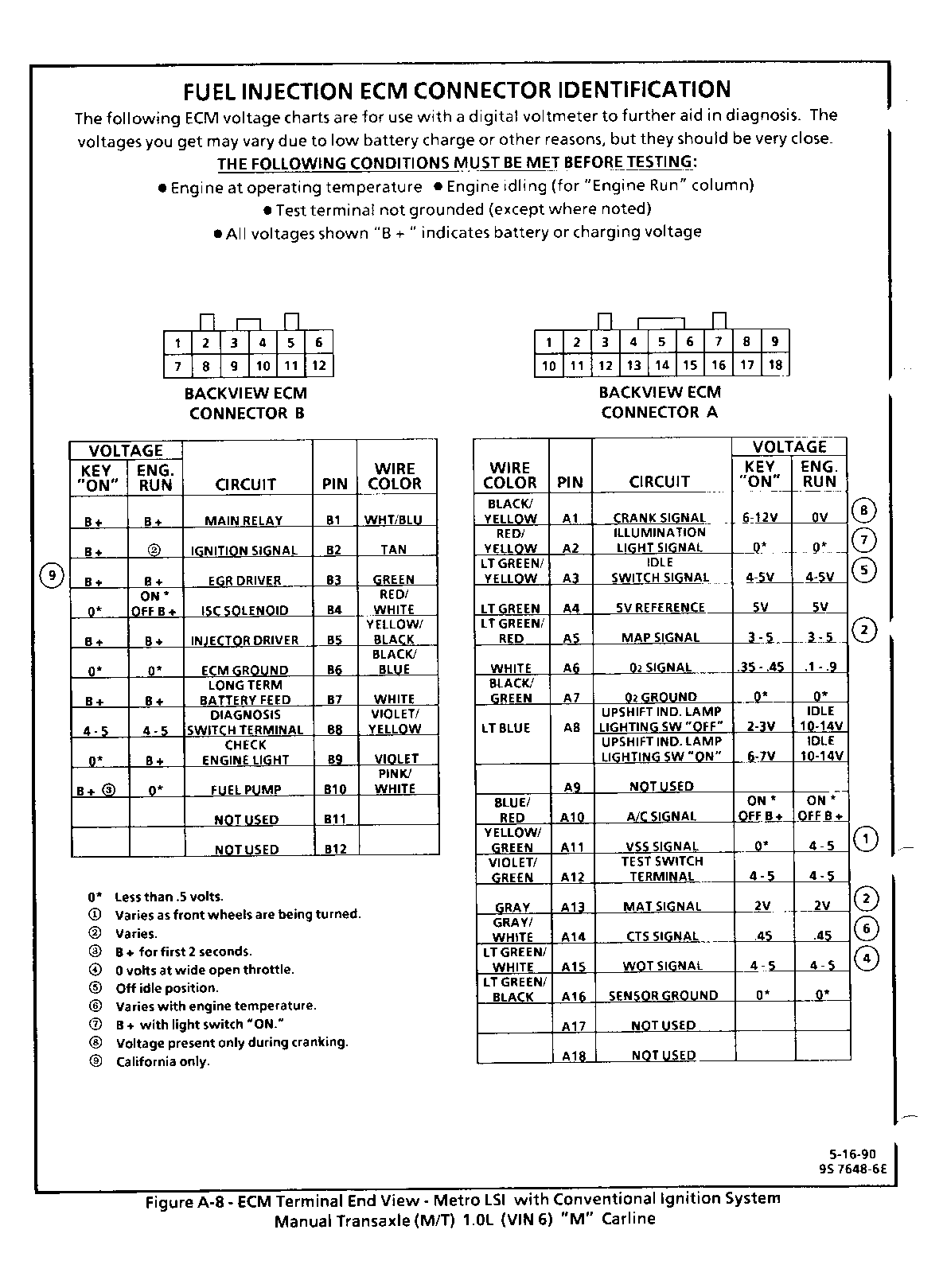

Fig 1: Graphic

SERVICE INFORMATION

This bulletin serves to revise page 6E2-A9 "ECM Terminal End View" in Section 6E2 "Driveability And Emissions" in the 1989 and 1990 Geo Metro 1.0L (VIN 6) "M" carline (TBI) Service Manual.

The ECM pin-out omits ECM terminal "B2" ignition signal.
