Frame & Body

Use designated lifting points as shown in illustrations. See Fig 1-Fig 4 .

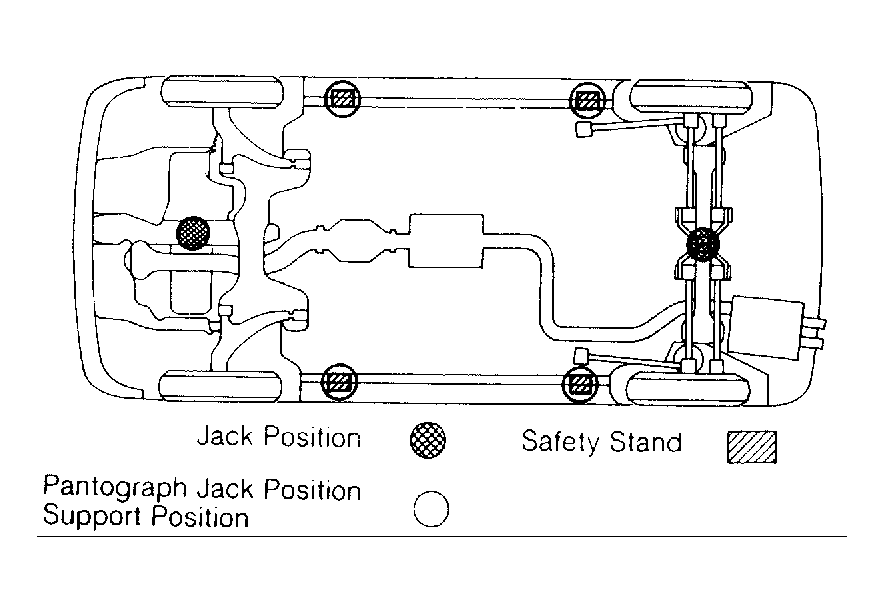

Fig 1: Jacking & Hoisting Points (Metro) Courtesy of General Motors Corp.

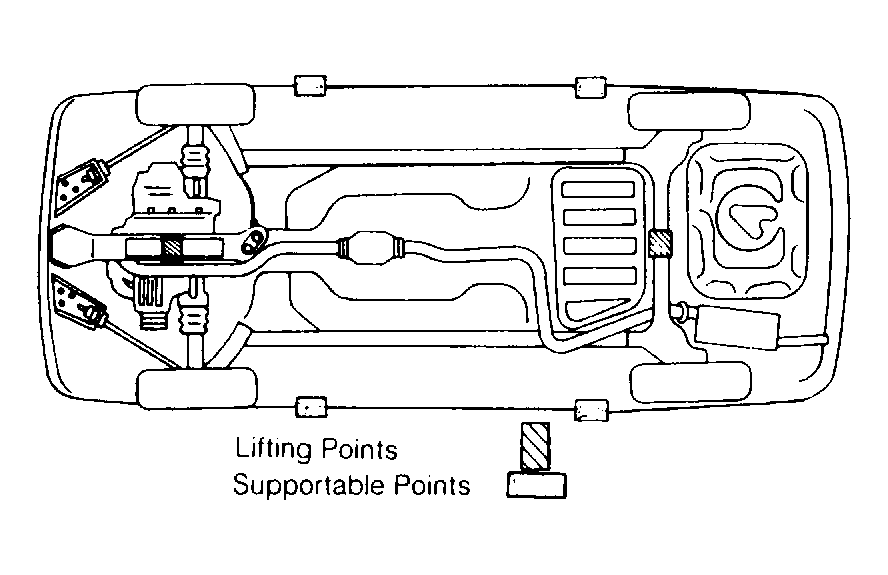

Fig 2: Jacking & Hoisting Points (Prizm) Courtesy of General Motors Corp.

Fig 3: Jacking & Hoisting Points (Spectrum) Courtesy of General Motors Corp.

Fig 4: Jacking & Hoisting Points (Tracker) Courtesy of General Motors Corp.
