Metro Base, 2D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Controls - Pin Voltage Charts
›
Pin Voltage Charts
Pin Voltage Charts

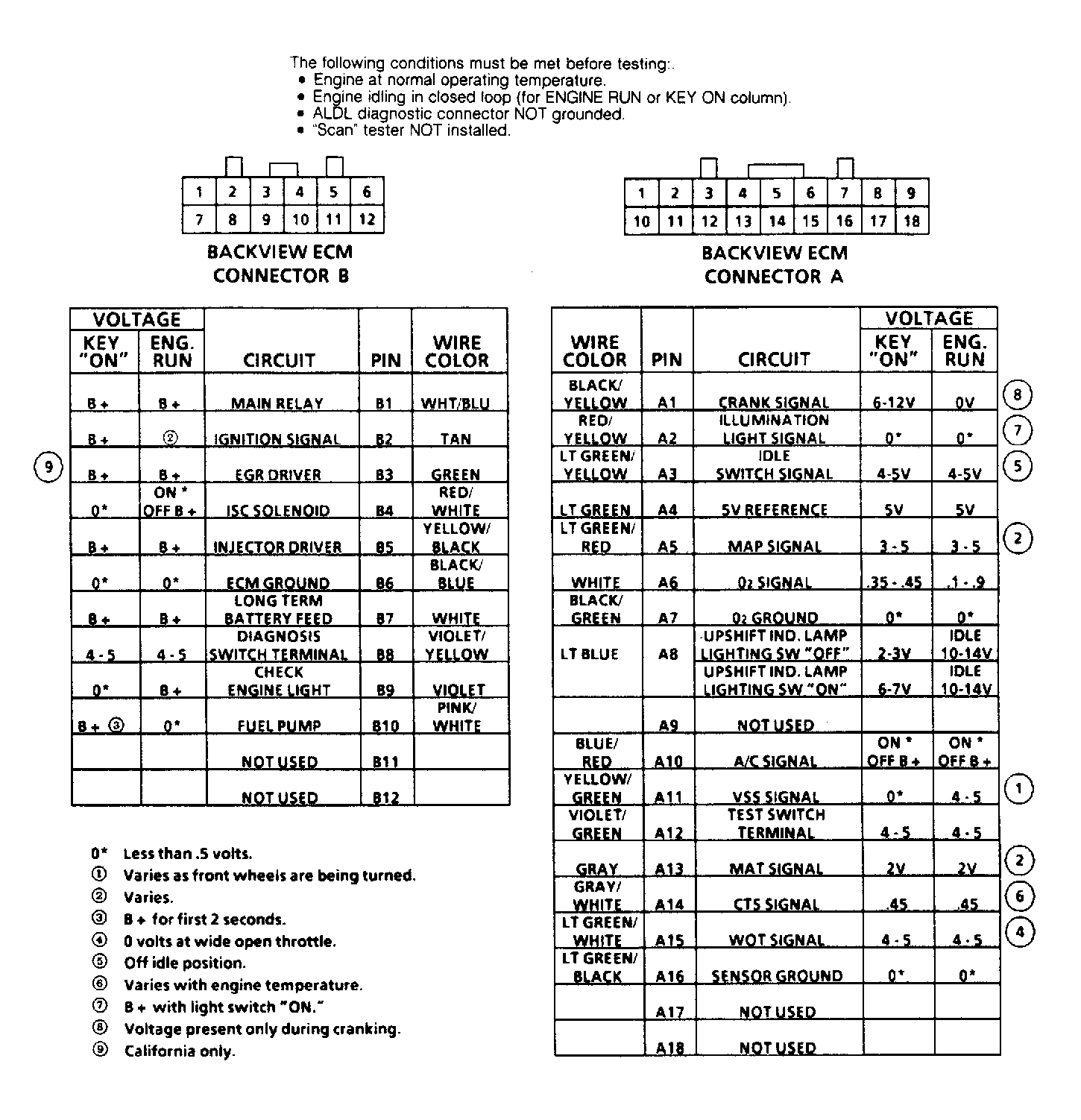

Fig 1: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & A/T)
Courtesy of GENERAL MOTORS CORP.

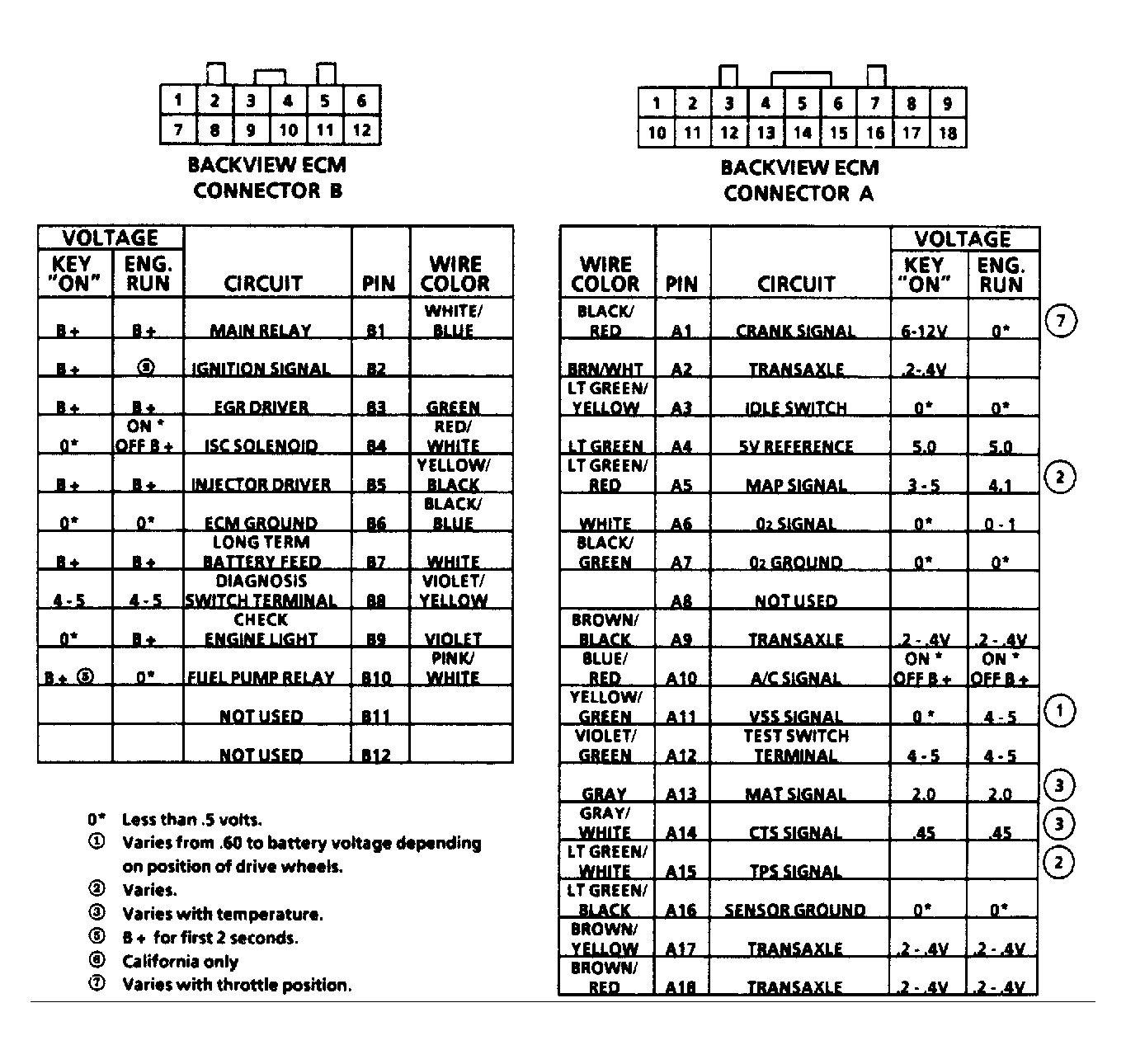

Fig 2: Checking ECM Terminal Pin Voltages (Metro With Conventional Ignition & M/T)
Courtesy of GENERAL MOTORS CORP.

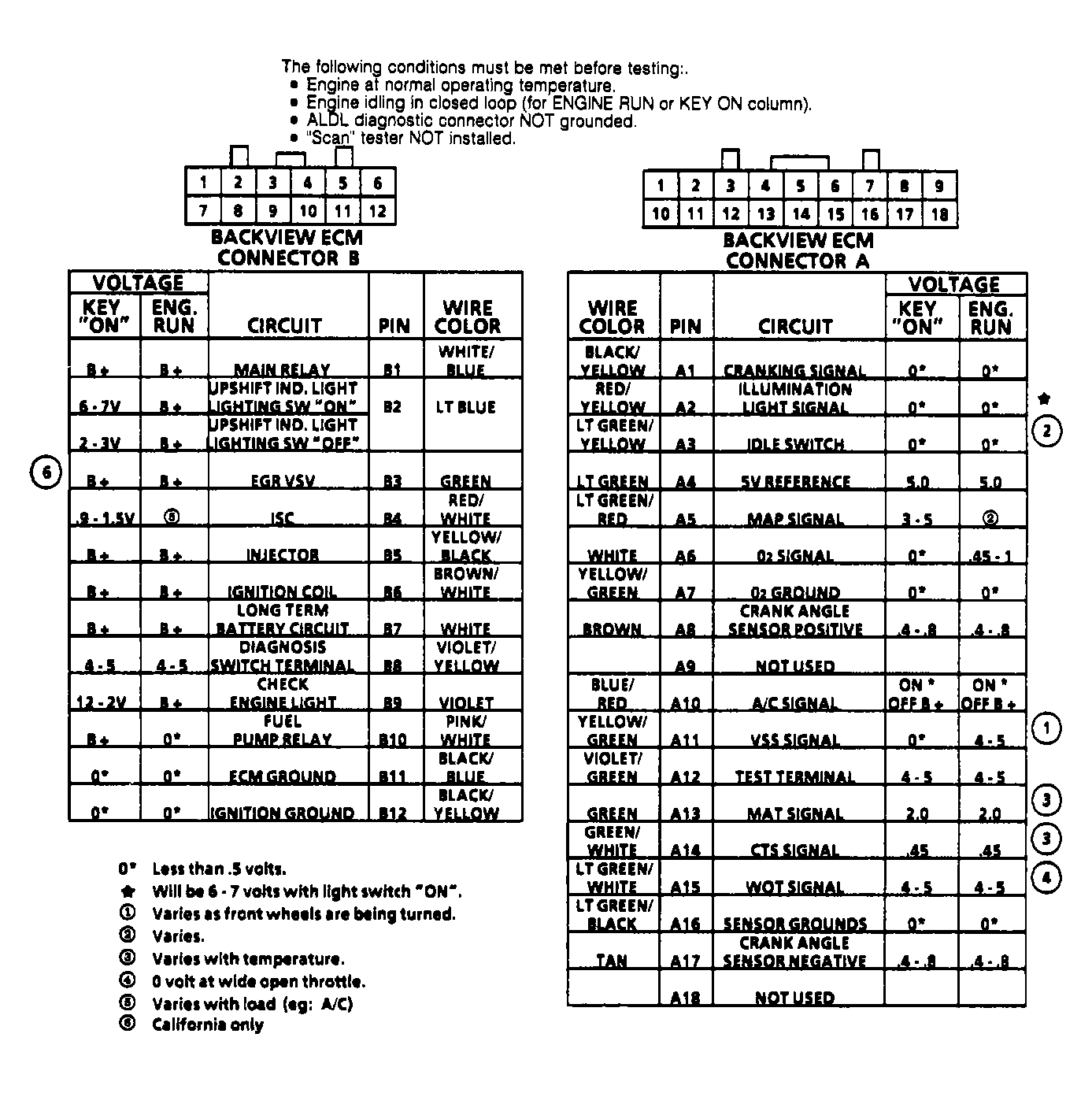

Fig 3: Checking ECM Terminal Pin Voltages (Metro With ESC Ignition & M/T)
Courtesy of GENERAL MOTORS CORP.
