Front Wiper Switch

NOTE: Before testing, ensure fuses, circuit breakers, relays and grounds are good.
  1. Remove 4 retaining screws from instrument cluster hood/switches panel. Pull cluster hood outward enough to locate and disconnect wiper/washer switch harness connector.

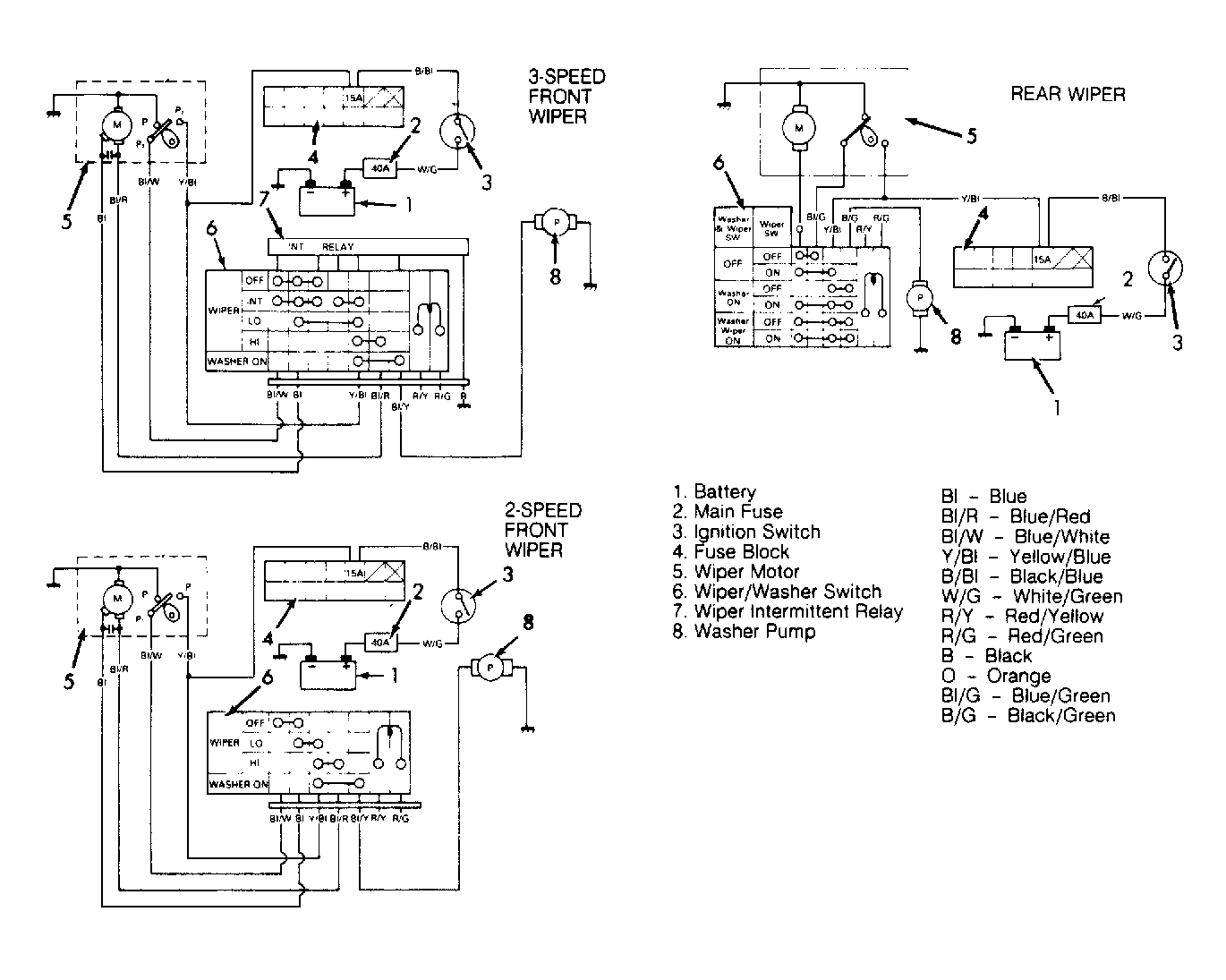

  2. Using ohmmeter, check wiper switch positions for continuity by probing between related terminals of wiper switch connector. See WIRING DIAGRAMS  in this article. See Figure . Replace switch as required.
