Engine Controls - Pin Voltage Charts
›
Pin Voltages
Pin Voltages

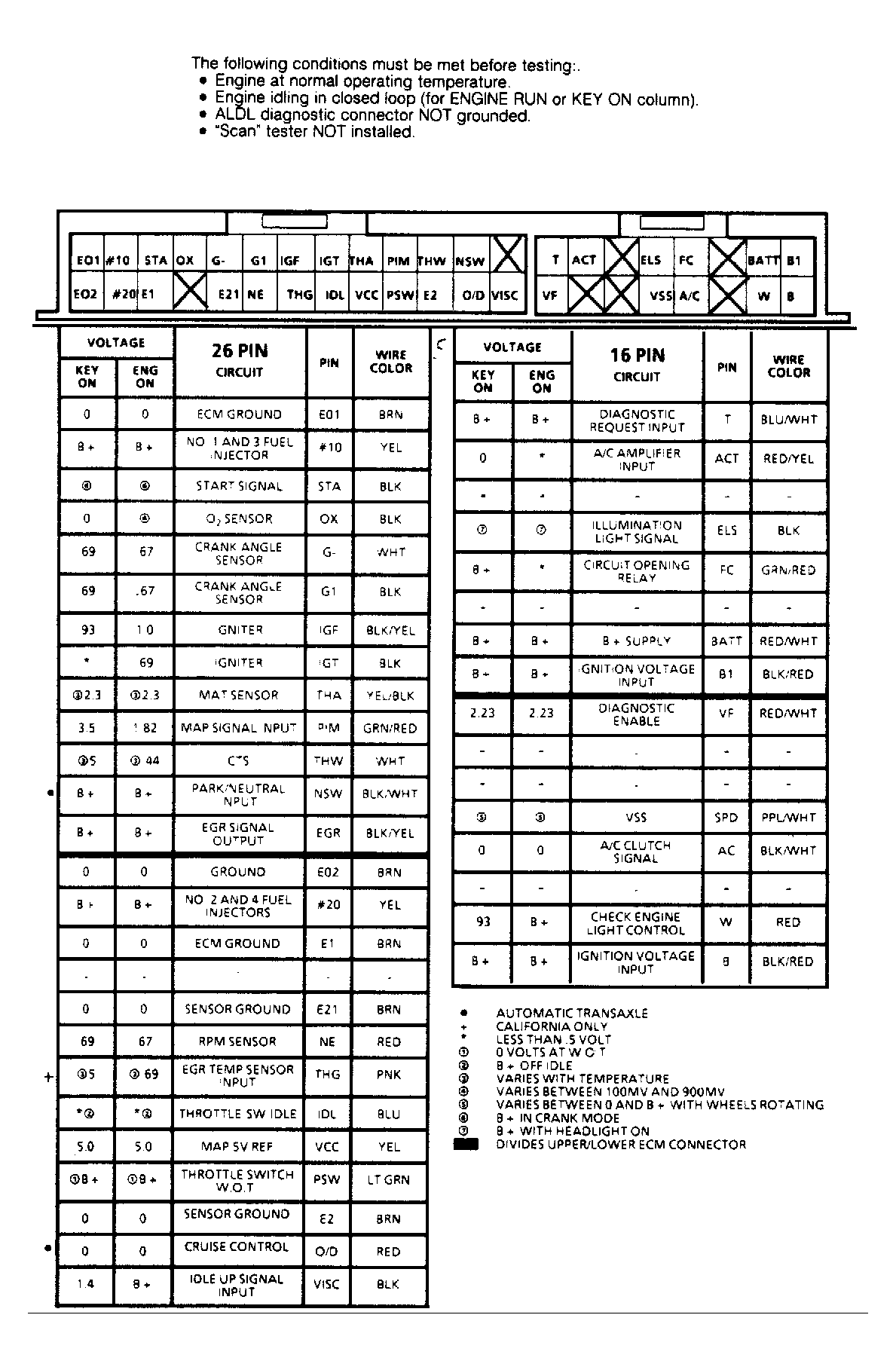

Fig 1: Checking ECM Terminal Pin Voltages (Prizm GSi VIN 5)
Courtesy of GENERAL MOTORS CORP.

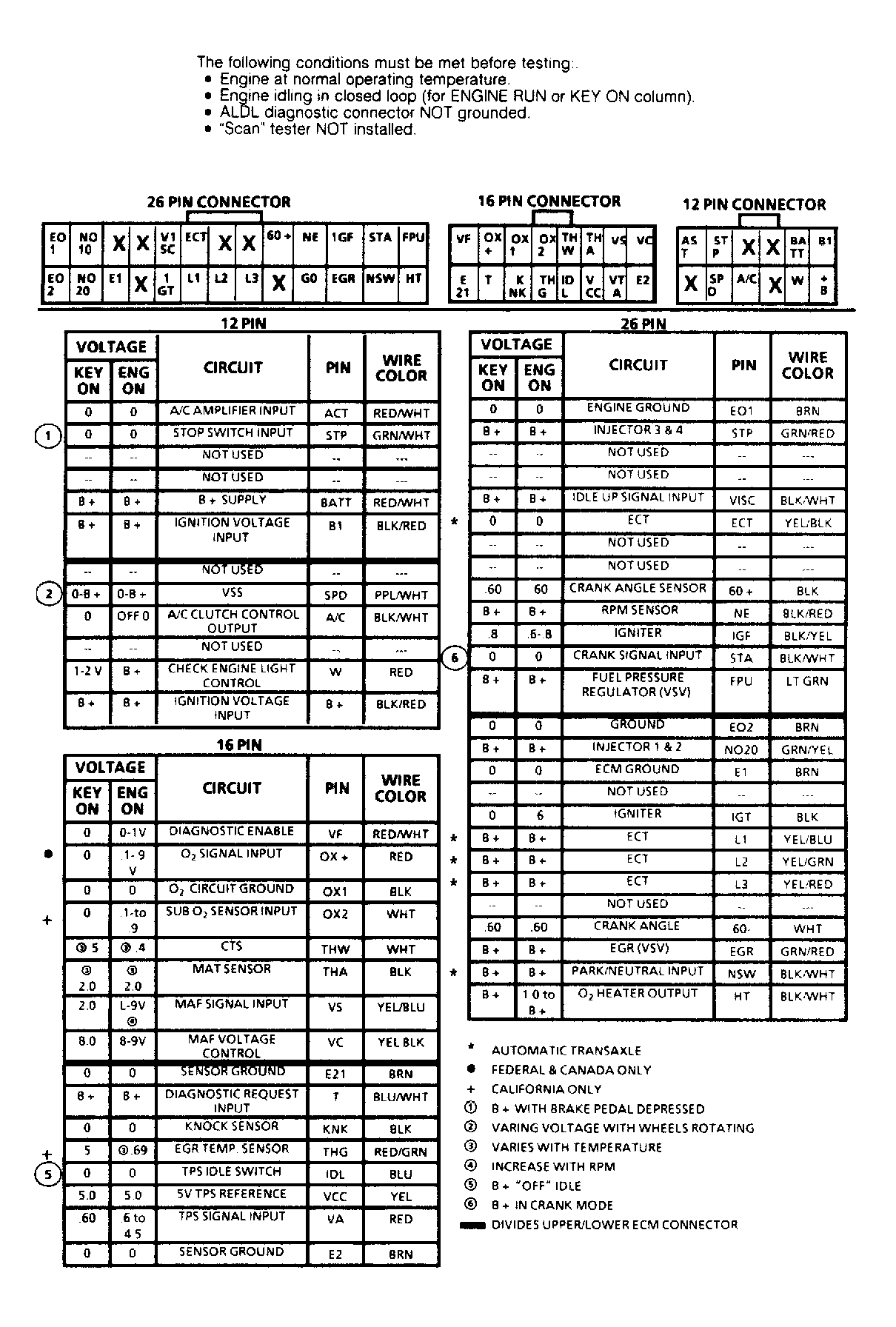

Fig 2: Checking ECM Terminal Pin Voltages (Prizm VIN 6)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
