Home › Geo › 1990 › Prizm Base, 4D Hatchback, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Diagnostic Circuit Check › Notes

Diagnostic Circuit Check: Notes

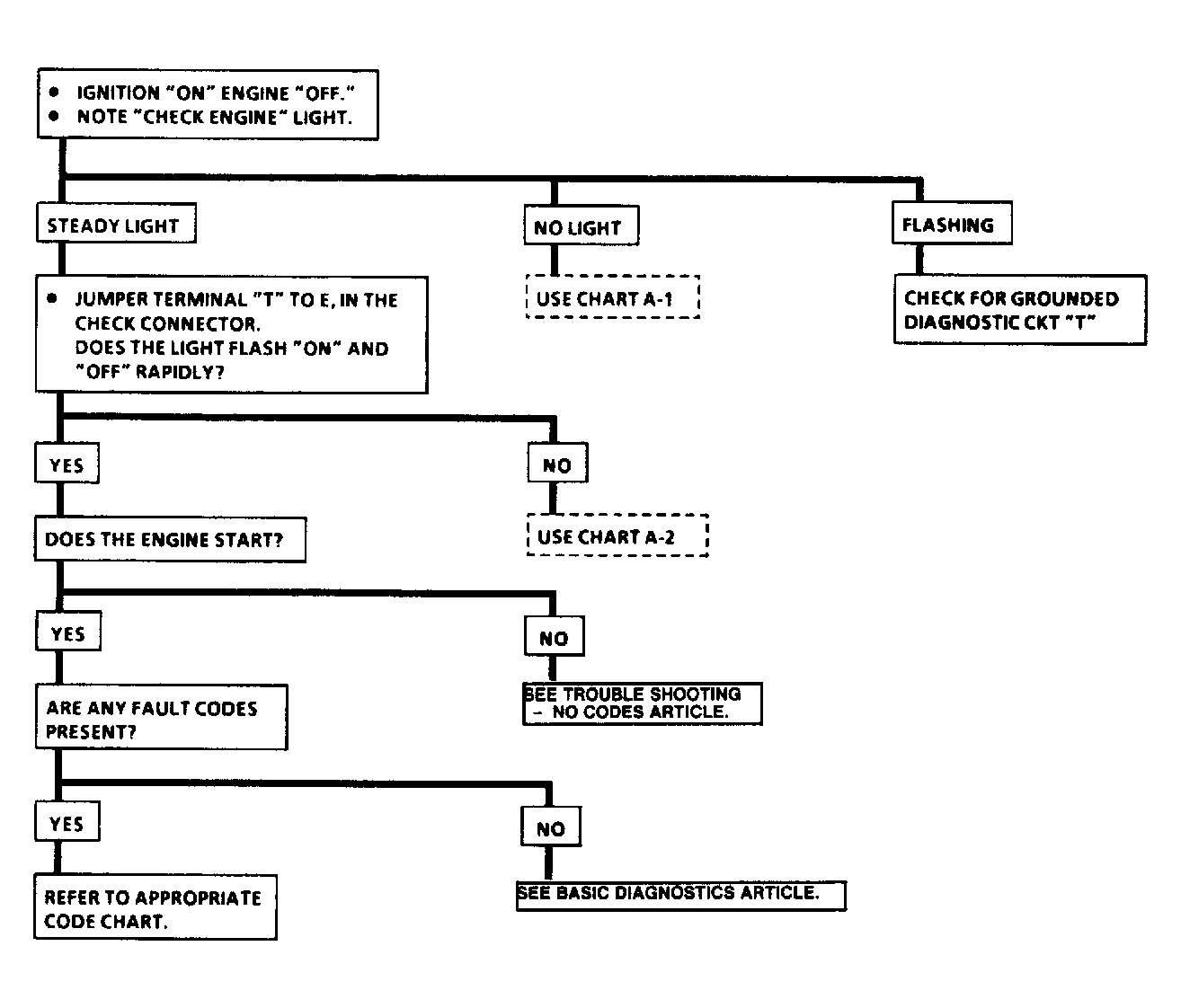

Fig 1: Diagnostic Circuit Check Flow Chart
G121629
