Diagnostic Aids

If code is intermittent, see TESTS W/O CODES article.

Fig 1: Code 52 Circuit Diagram

G90E15812

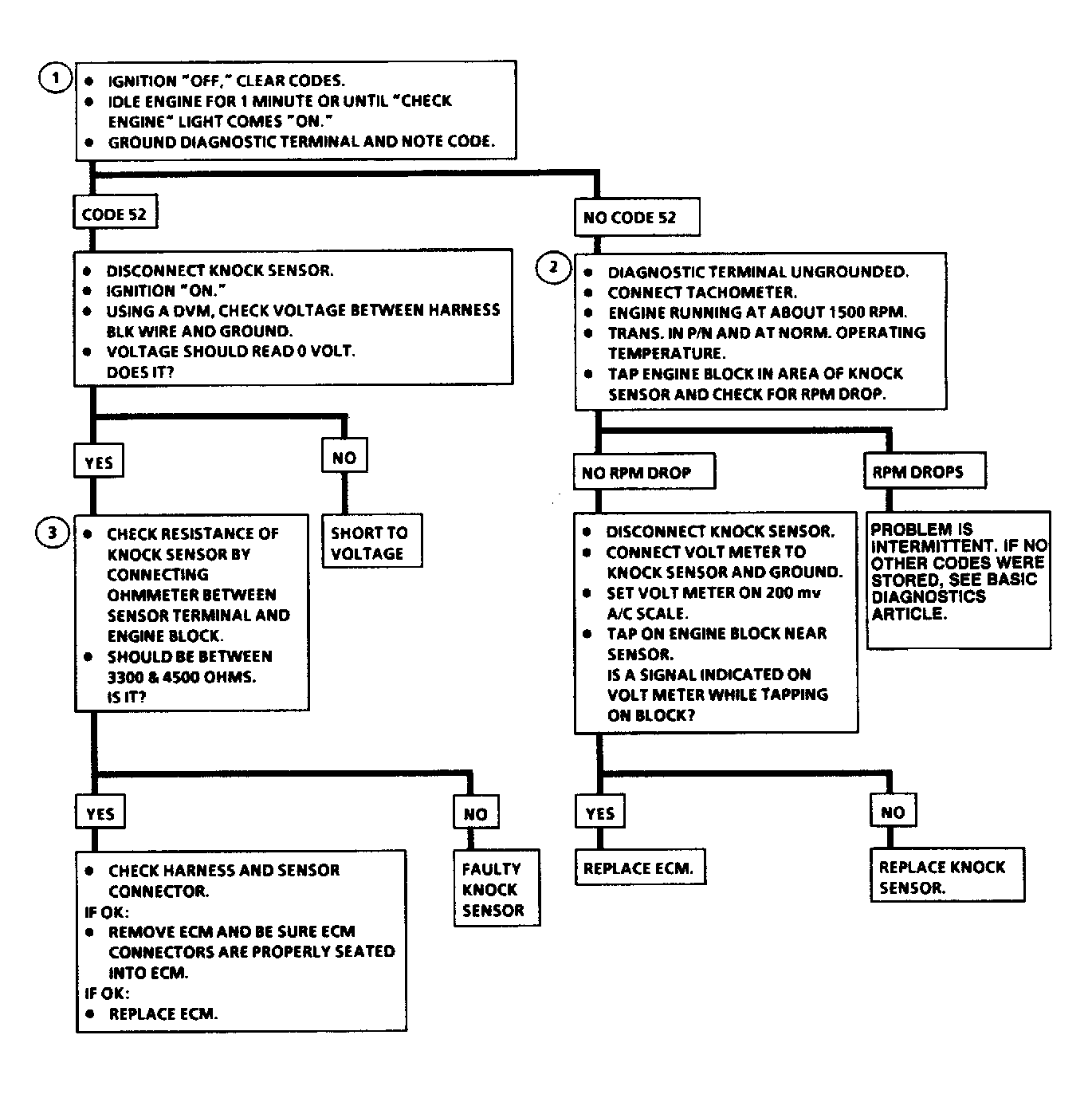

Fig 2: Code 52 Flow Chart

G90F15813
