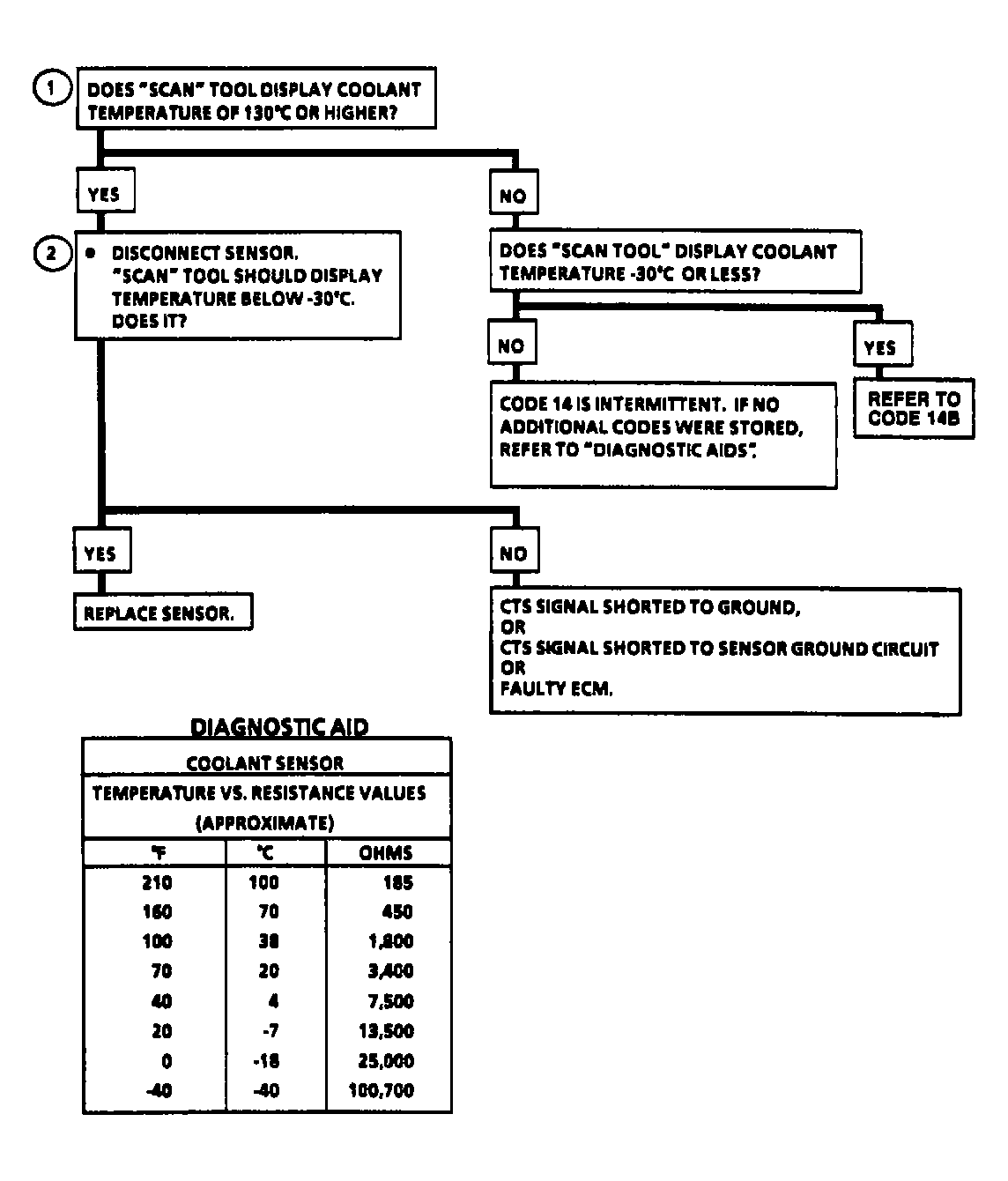

After engine is started, engine coolant temperature should rise to approximately 194°F (90°C) and stabilize when thermostat opens. Code 14A sets if Gray wire is shorted to ground. If code is intermittent, see TESTS W/O CODES article.
