Front Wiper Switch

NOTE: Before testing, ensure fuses, circuit breakers, relays and grounds are good.

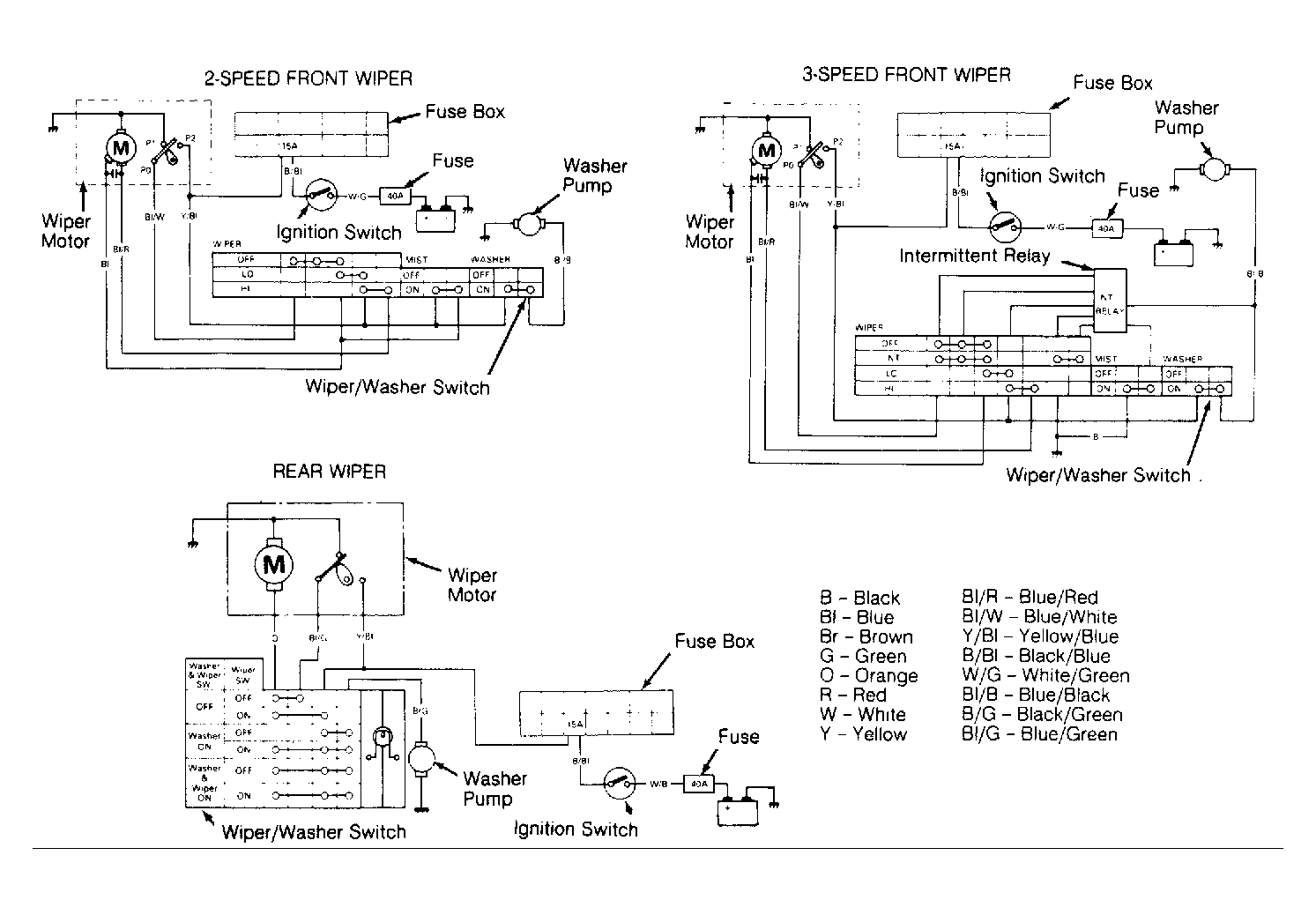

Disconnect combination switch 20-terminal harness connector located behind left instrument panel, near steering column. Using ohmmeter, check wiper switch positions for continuity by probing between related terminals of wiper switch connector. See WIRING DIAGRAMS in this article. See Figure . Replace switch as required.
