EXPERTEC TSB (91-191-1A)
Publication date: 1991-01-30Reference number: 91-191-1A
EXPERTEC TSB
TECHNICAL SERVICE BULLETIN
Reference Number(s): 91-191-1A, Date of Issue:
01/30/91
SERVICE MANUAL UPDATE SEC. 1A - HEATER SYSTEM DIAGNOSIS CHART
Model(s): 1990-91 Chevrolet Geo Tracker
Bulletin No.: Chevrolet 91-191-1A
Date: 01/30/1991
SUBJECT
HEATER SYSTEM DIAGNOSIS CHART CORRECTION
SERVICE INFORMATION
This bulletin amends the "Heater and Ventilation Diagnosis" charts found in Heater System (Section 1A) of the 1990 and 1991 GEO Tracker Service Manuals ST377-90 and ST377-91, respectively).

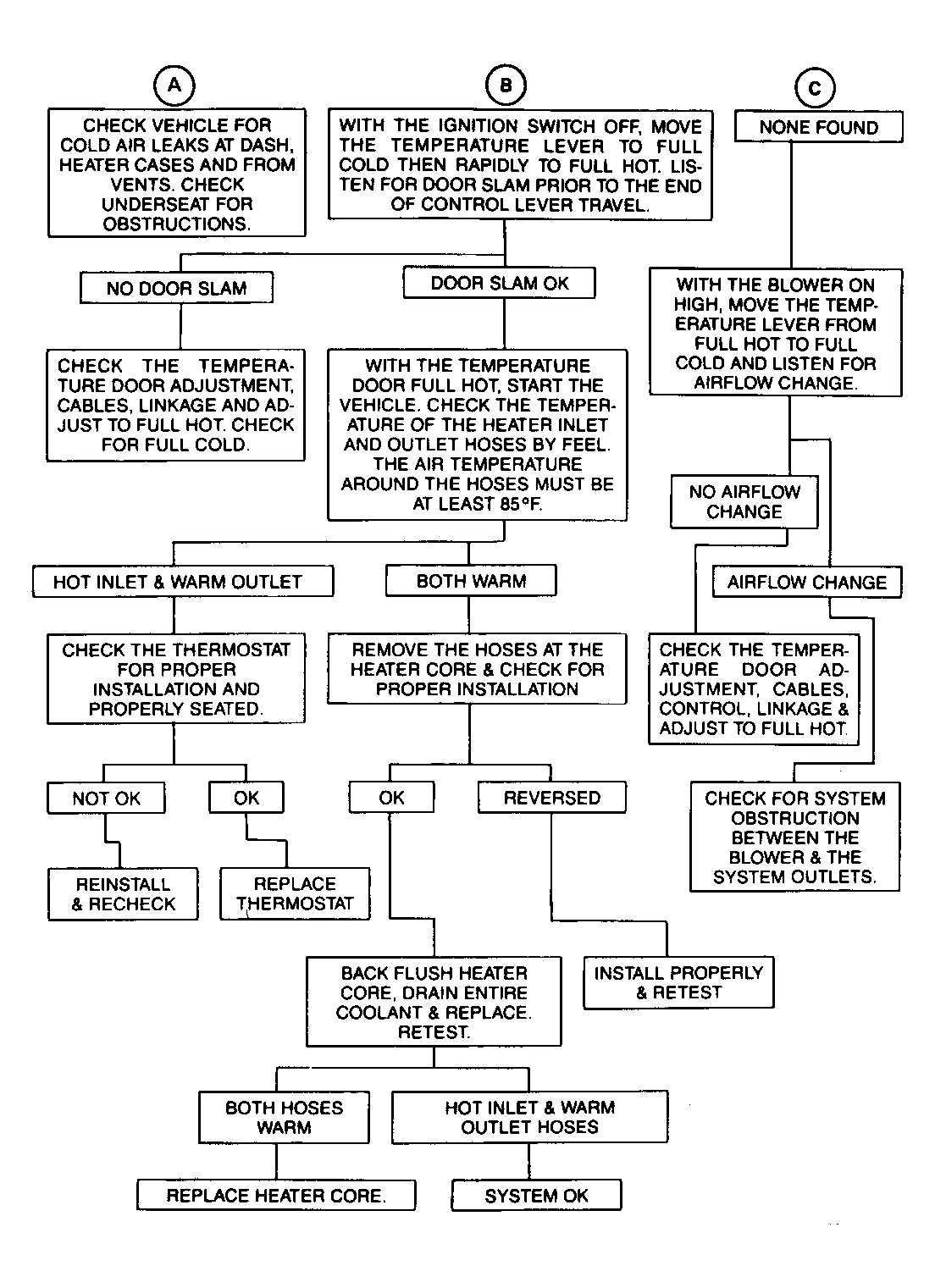

Fig. 10 of this bulletin replaces Fig. 12, on page 1A-8, of the 1990 GEO Tracker Service Manual (ST377-90). Fig. 10 of this bulletin also replaces Fig. 10, on page 1A-7 of the 1991 GEO Tracker Service Manual (ST377-91).
