Diagnostic Aids

Improper fuel pressure may cause the following: engine cranks but will not start, engine cuts out, hesitation, loss of power, and Codes 44 and 45 may be set.

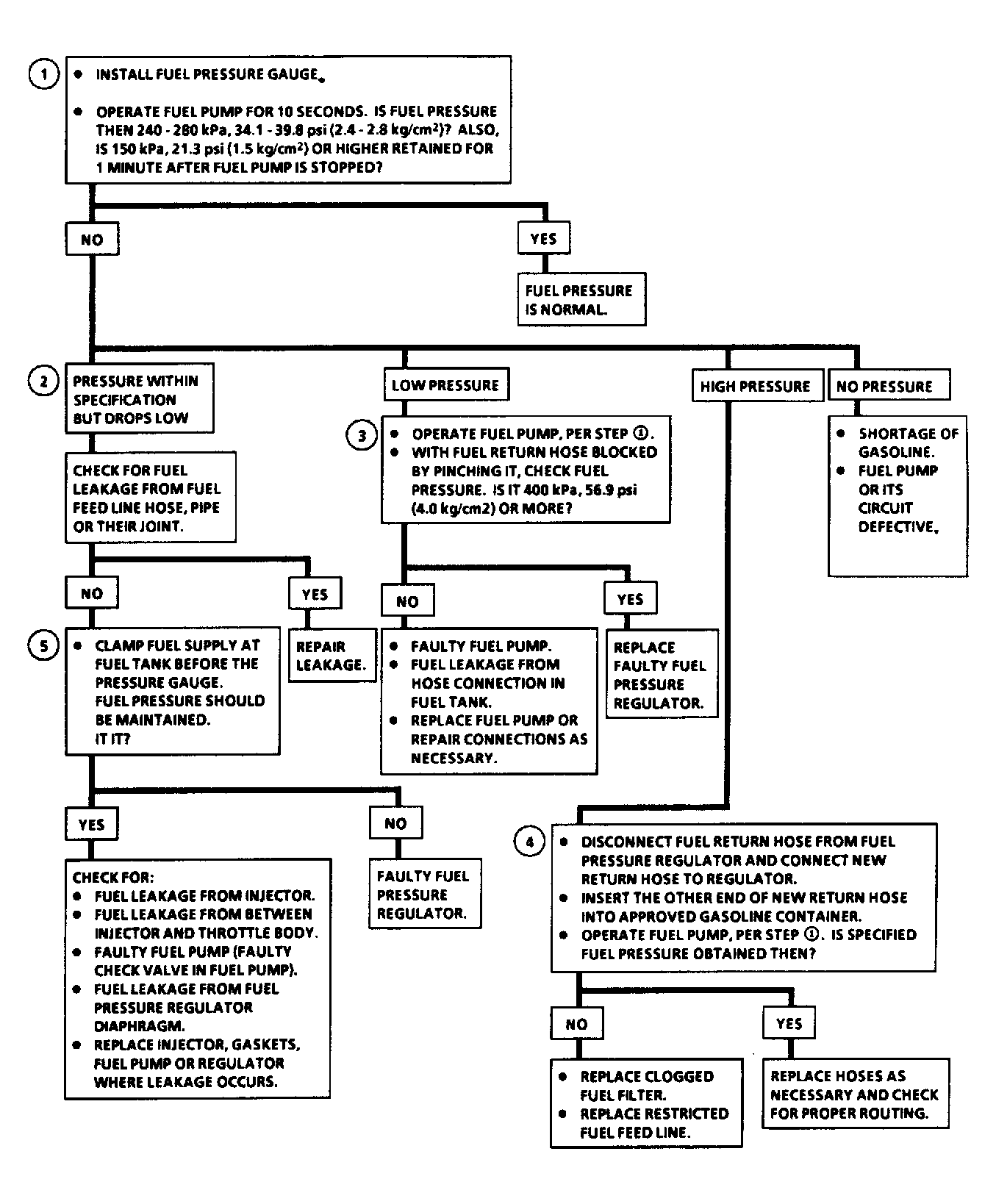

Fig 1: Chart A-7, Fuel System Pressure Test
G91D16785Courtesy of GENERAL MOTORS CORP.
