Diagnostic Aids

If speedometer cable is binding, Code 24 can be set. Ensure that speedometer is free from restrictions and has a secure connection to instrument cluster. If problem is intermittent, refer to TESTS W/O CODES article in the ENGINE PERFORMANCE Section.

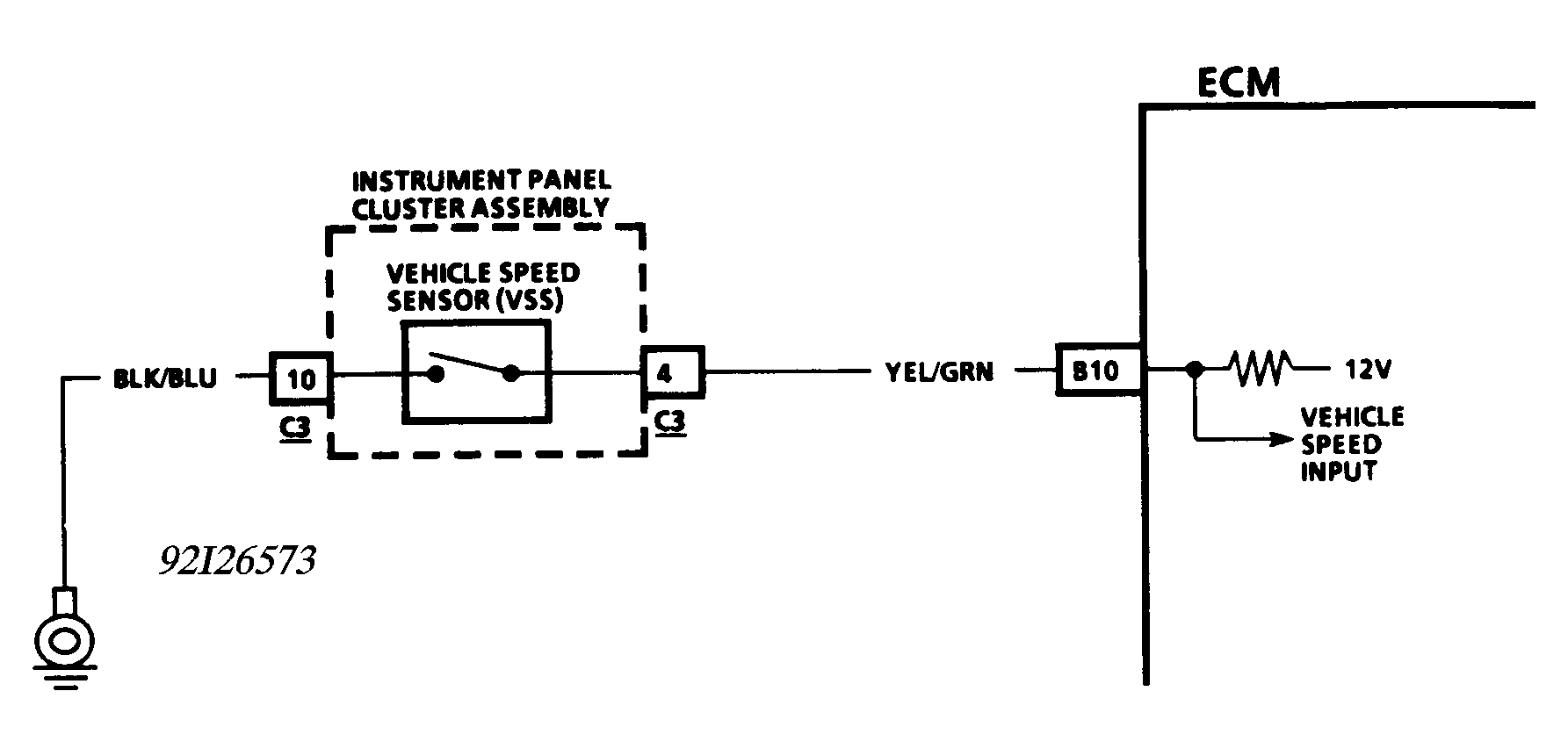

Fig 1: Code 24 Schematic, Vehicle Speed Sensor Circuit
G92I26573

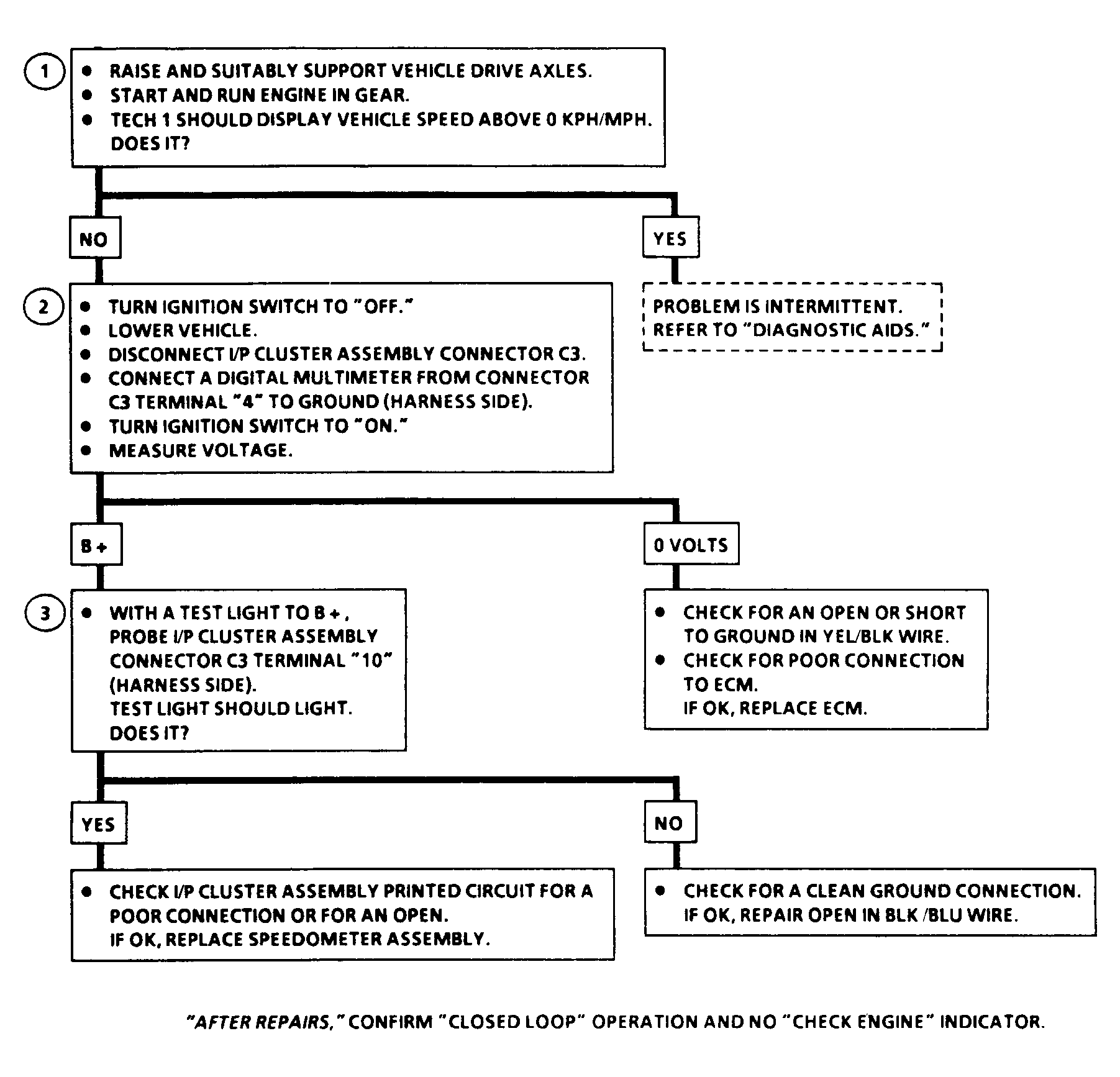

Fig 2: Code 24 Flow Chart, Vehicle Speed Sensor Circuit
G92J26574
