Pin Voltage Charts

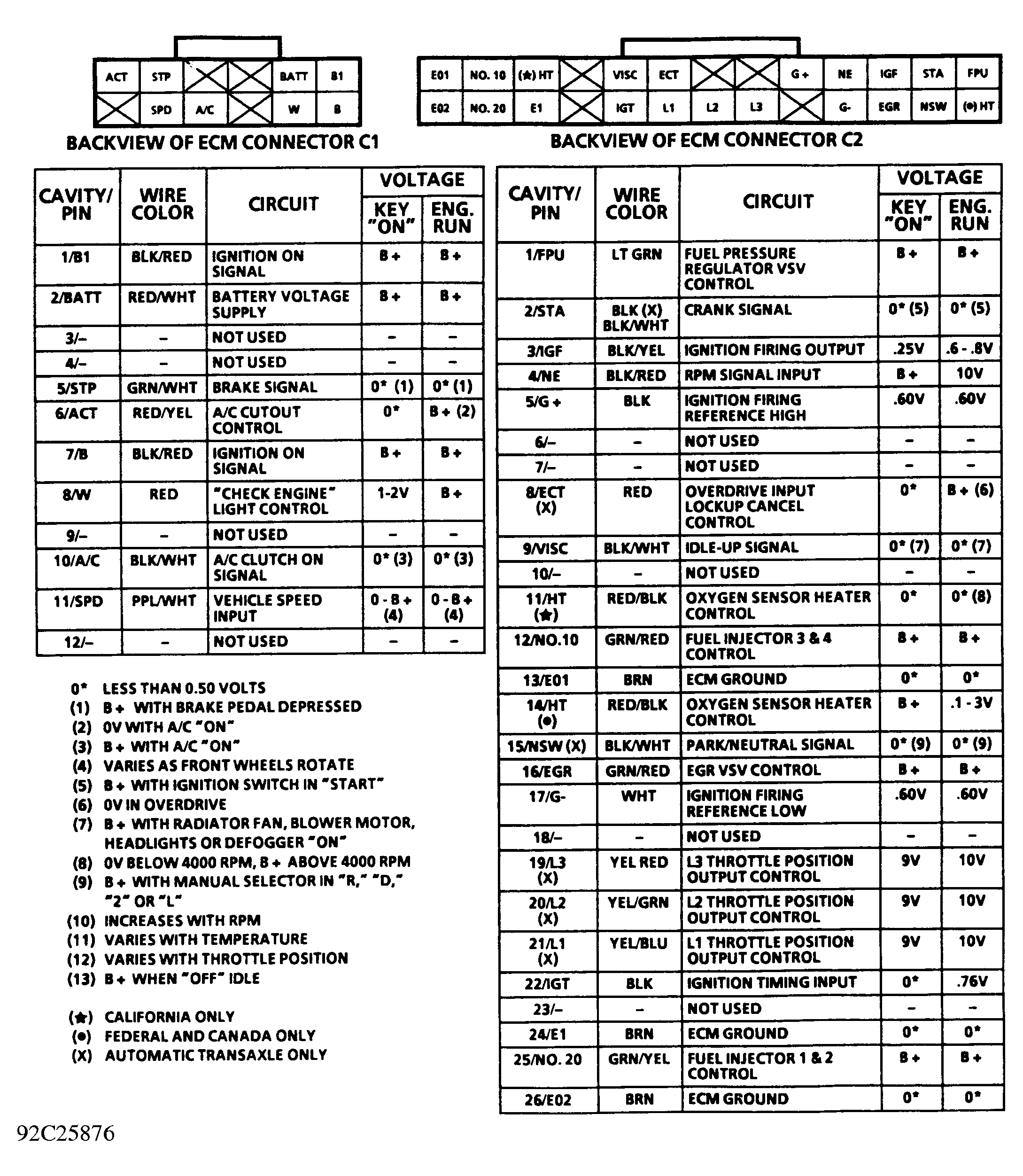

Fig 1: ECM Terminal Pin Voltages (Metro)

Courtesy of GENERAL MOTORS CORP.

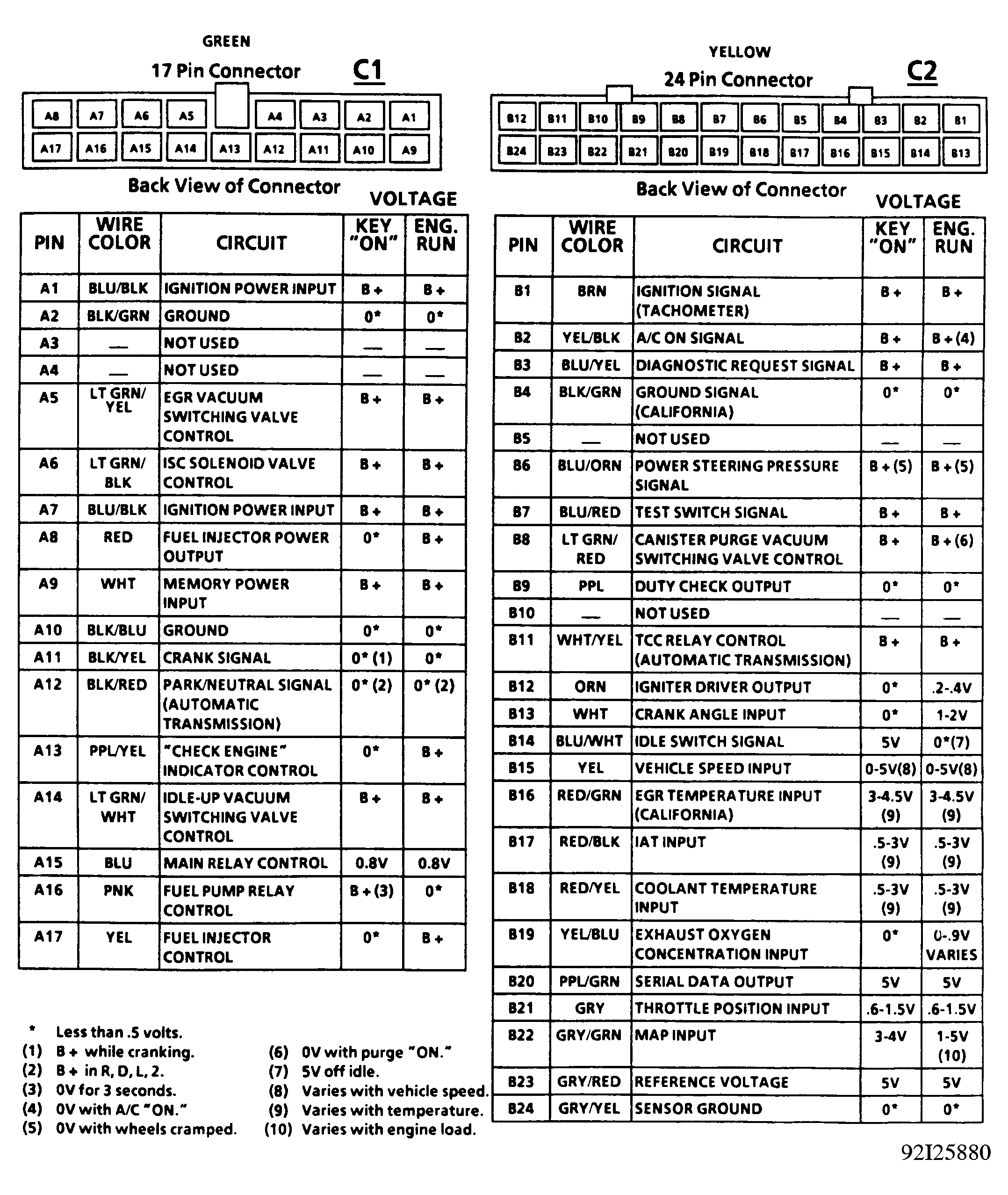

Fig 2: ECM Terminal Pin Voltages (Prizm, Connectors C1 & C2)

Courtesy of GENERAL MOTORS CORP.

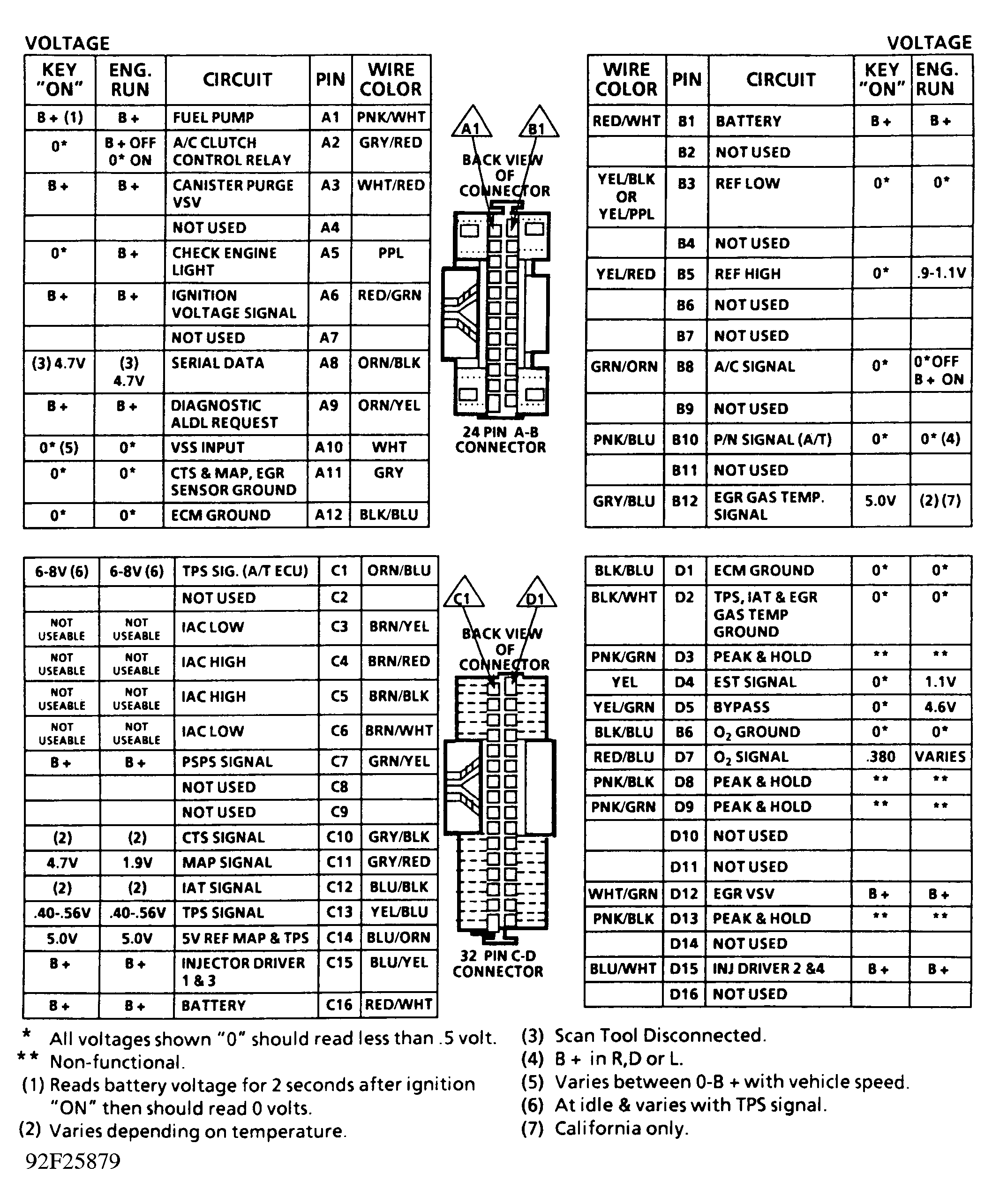

Fig 3: ECM Terminal Pin Voltages (Prizm, Connector C3)

Courtesy of GENERAL MOTORS CORP.

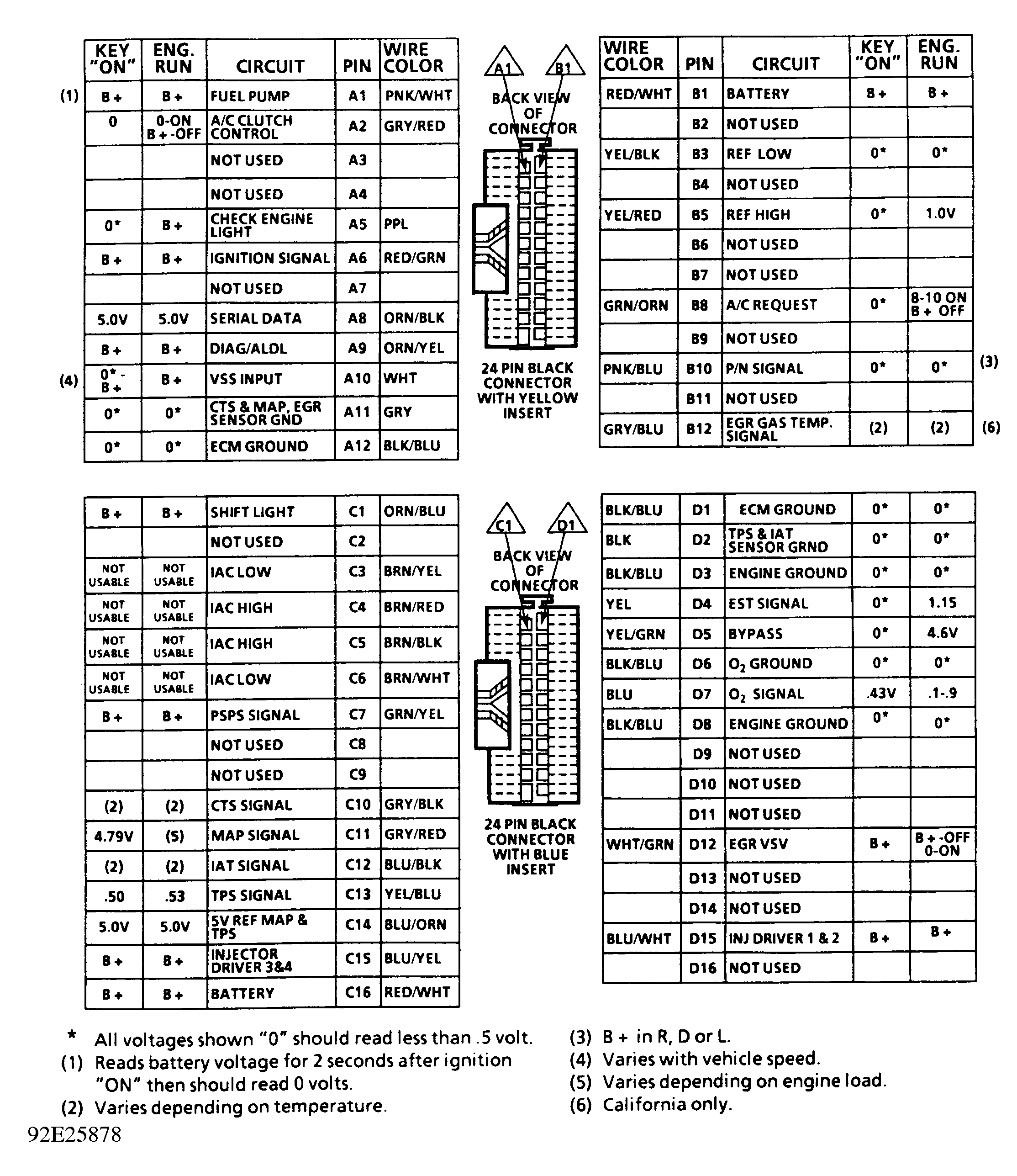

Fig 4: ECM Terminal Pin Voltages (Storm VIN 6, 1.6L SOHC)

Courtesy of GENERAL MOTORS CORP.

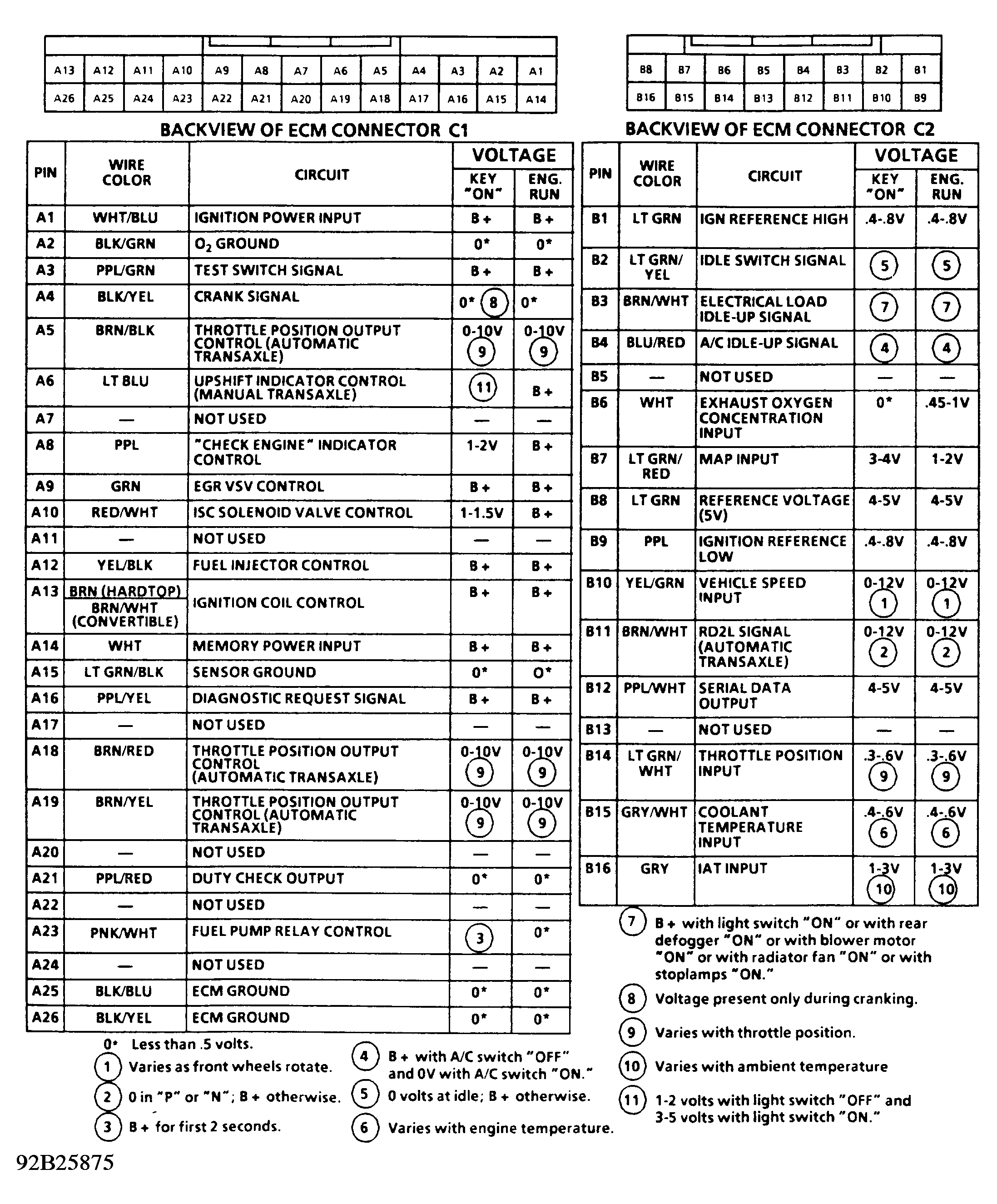

Fig 5: ECM Terminal Pin Voltages (Storm VIN 8, 1.8L DOHC)

Courtesy of GENERAL MOTORS CORP.

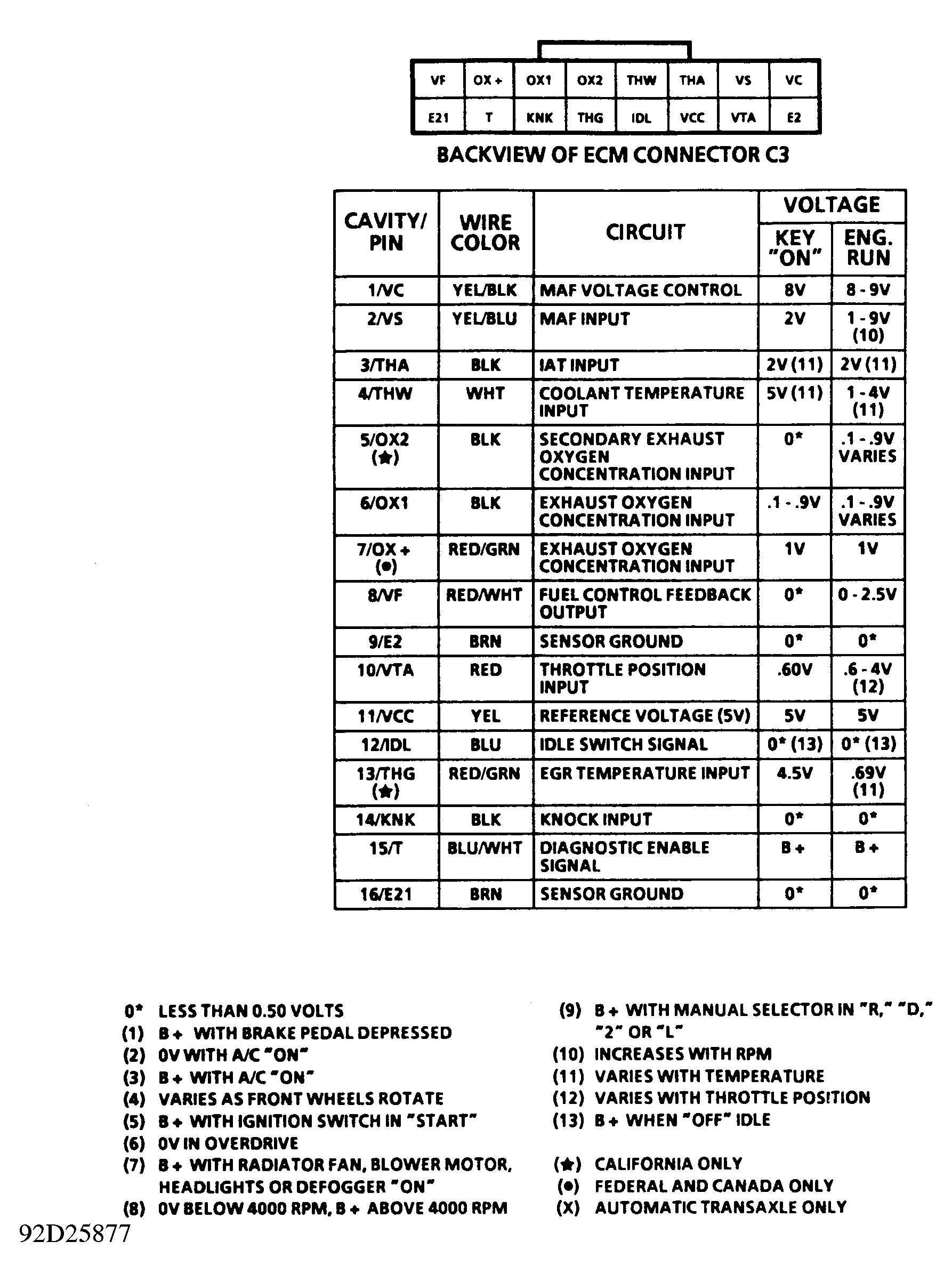

Fig 6: ECM Terminal Pin Voltages (Tracker)

Courtesy of GENERAL MOTORS CORP.
