System Functional Check

To diagnose system, perform system functional check. See Fig 1 .

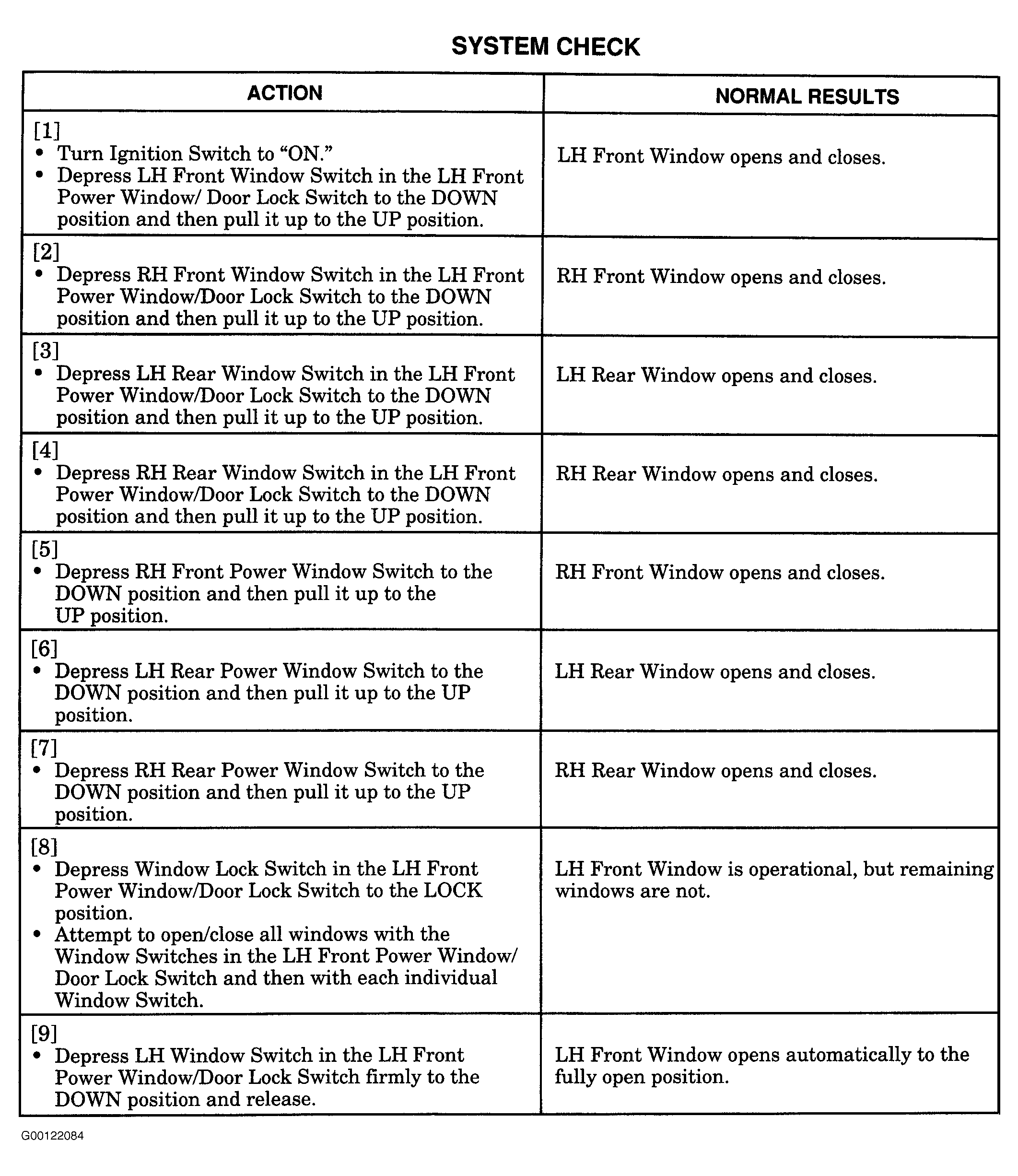

Fig 1: System Functional Check
G00122084Courtesy of GENERAL MOTORS CORP.
