Chart #5 Right Front Window Does Not Close With Either Right Switch Pulled Up
Chart #5 Right Front Window Does Not Close With Either Right Switch Pulled Up
If right front window does not close with either right switch pulled up, see
Fig 1
.

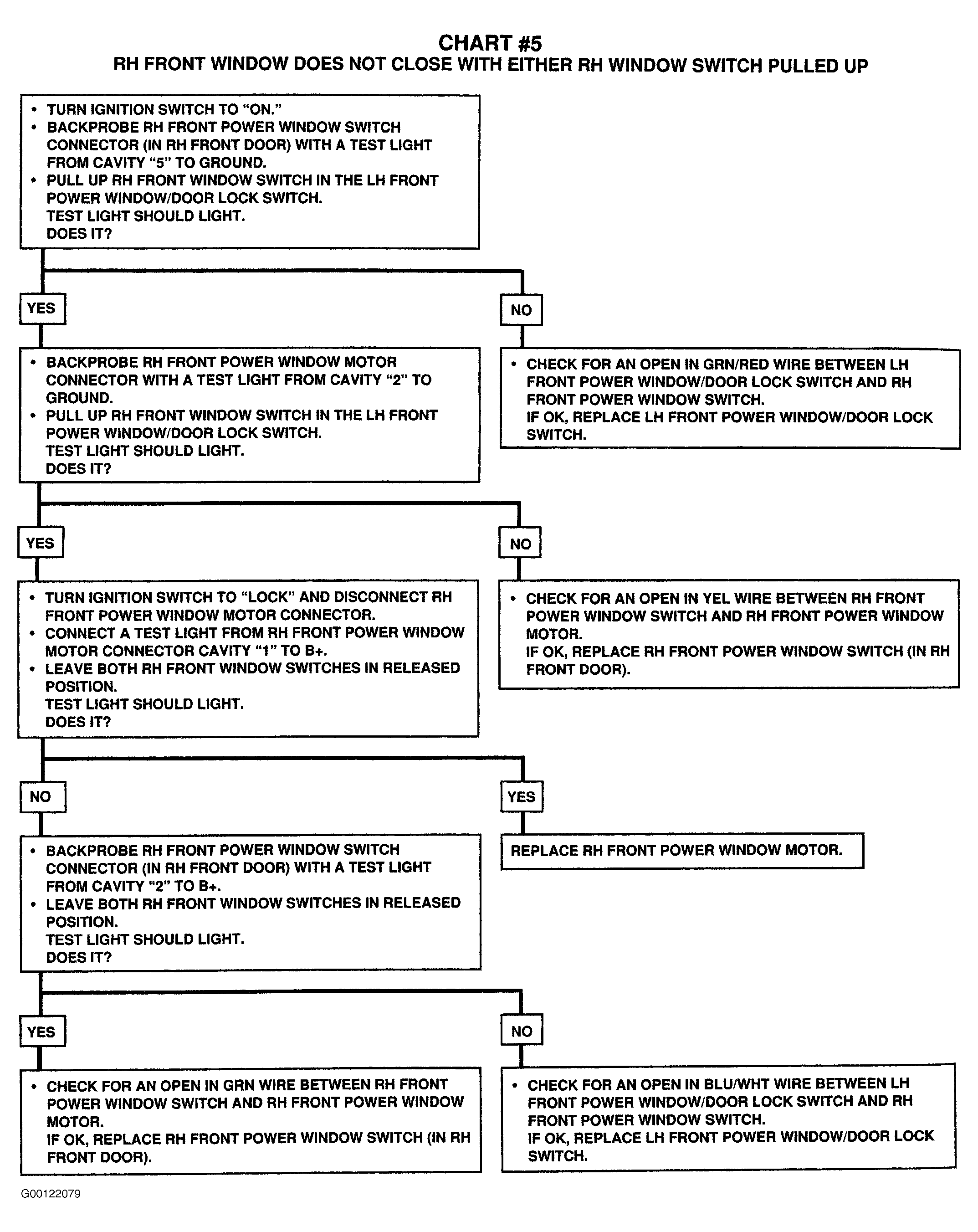

Fig 1: Chart #5: Right Front Window Does Not Close With Either Right Switch Pulled Up
Courtesy of GENERAL MOTORS CORP.
