Riding Height Adjustment: Specifications

RIDING HEIGHT

Measurement ⁽¹⁾

In. (mm)

"A"

19.70 (500.0)

"B"

19.70 (500.0)

"J"

8.70 (221.4)

"K"

8.80 (222.6)

"Z"

3.00 (77.0)

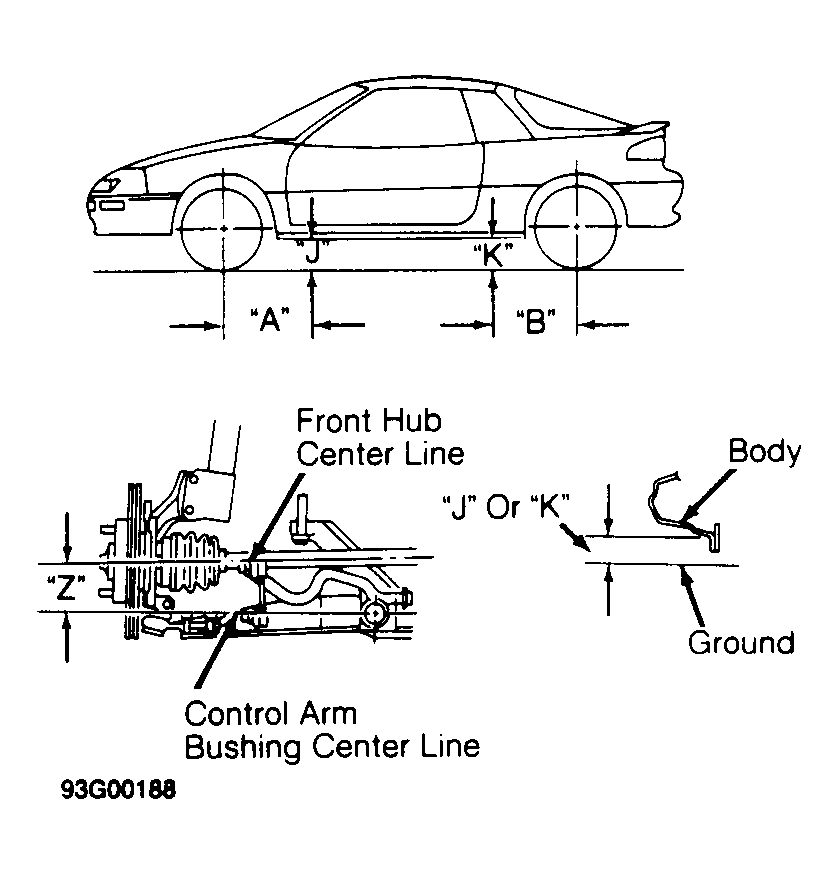

⁽¹⁾	See Figure .
