Diagnostic Aids

When replacing IAT sensor, check TEMPERATURE TO RESISTANCE VALUES table. A "shifted" sensor could result in poor driveability complaints.

Fig 1: Code 25 - Schematic IAT Sensor Circuit, High Temperature Indicated
G92E26926

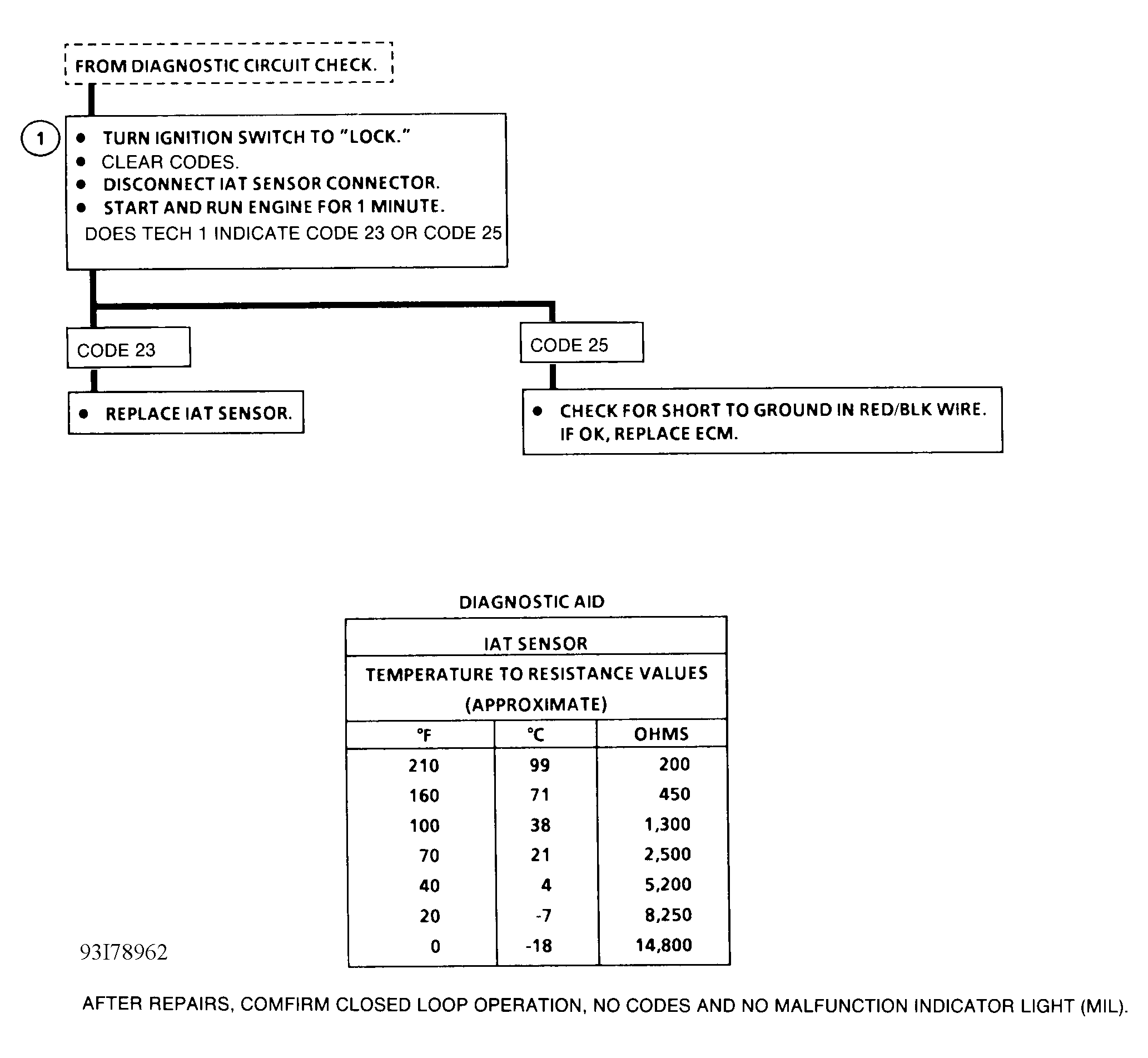

Fig 2: Code 25 - Flow Chart IAT Sensor Circuit, High Temperature Indicated
G93I78962
