Throttle Position (TP) Sensor

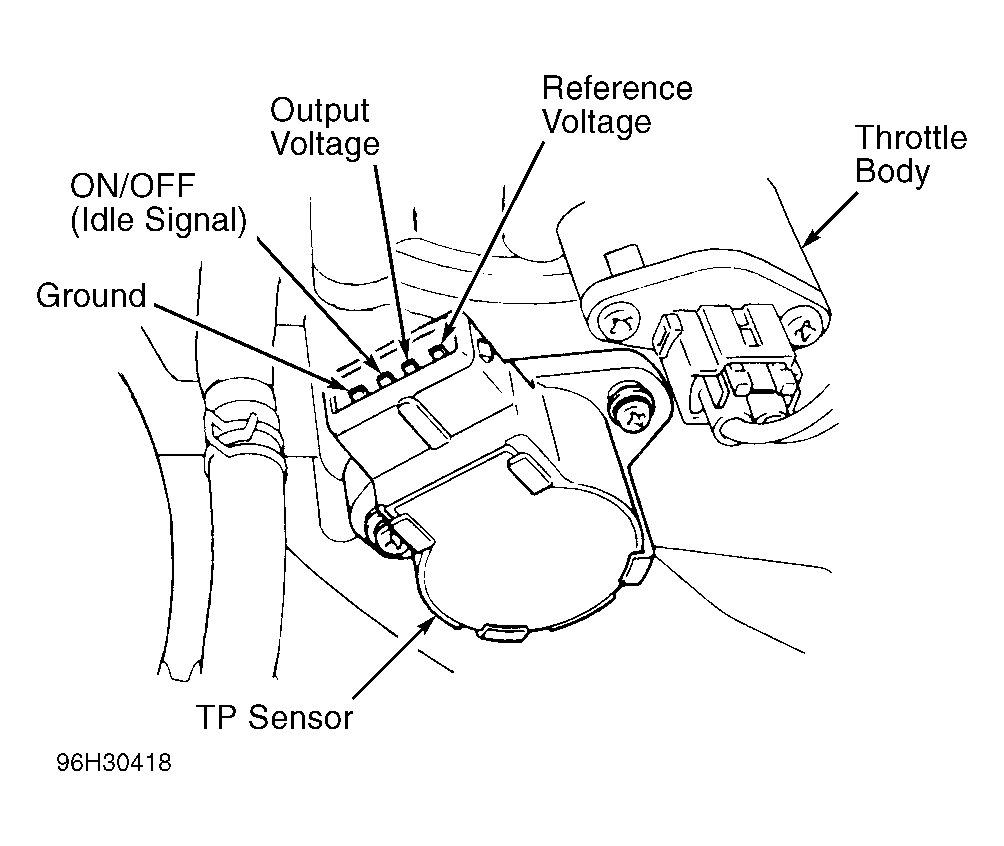

TP sensor delivers closed throttle and variable throttle position input signals to TCM to assist in transaxle shifting. TP sensor is located on side of throttle body. See Figure.
