Chart E - Abs Active Indicator Malfunctioning
Chart E - Abs Active Indicator Malfunctioning

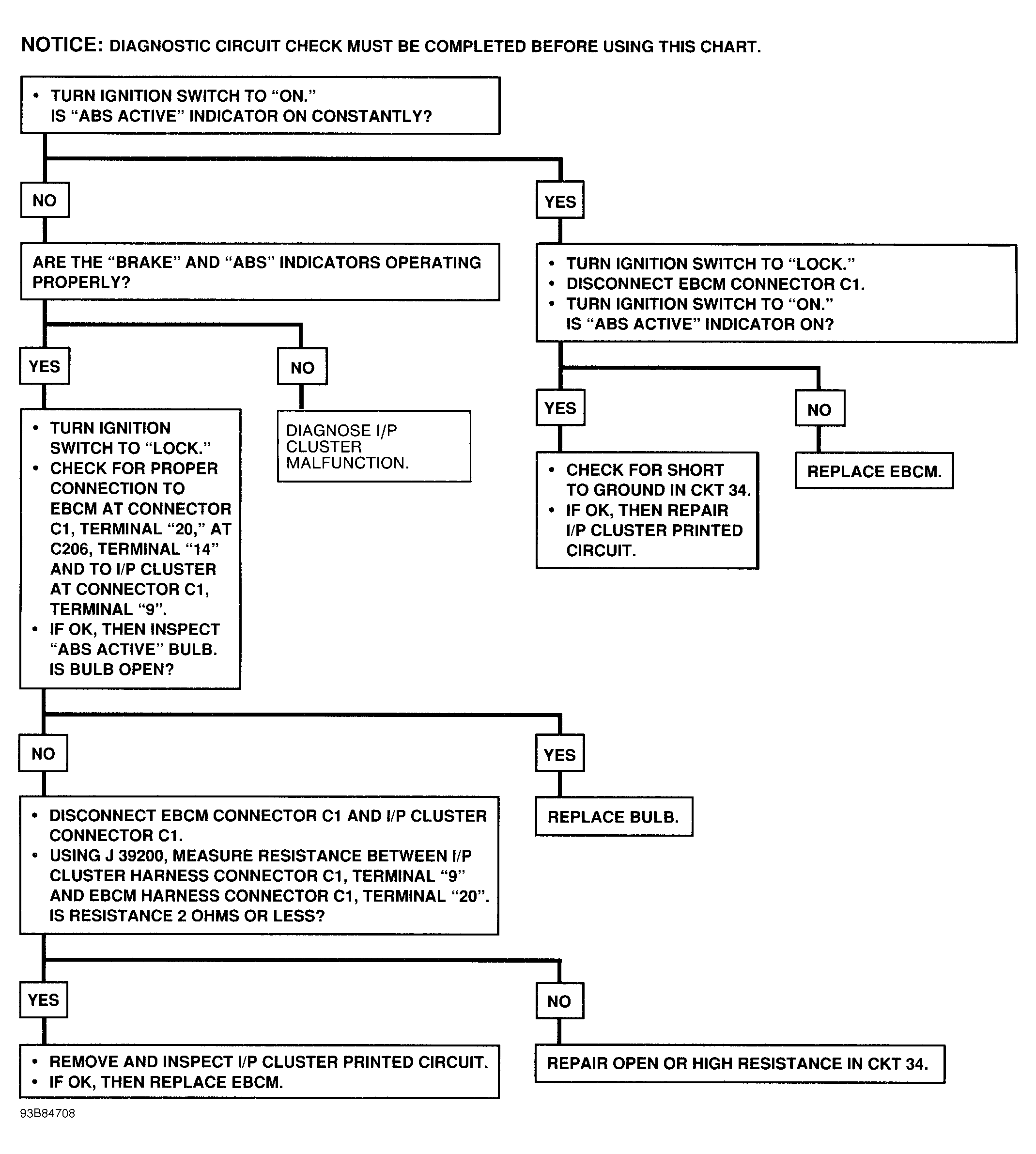

Fig 1: Chart E, Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
