Power Mirror Assembly

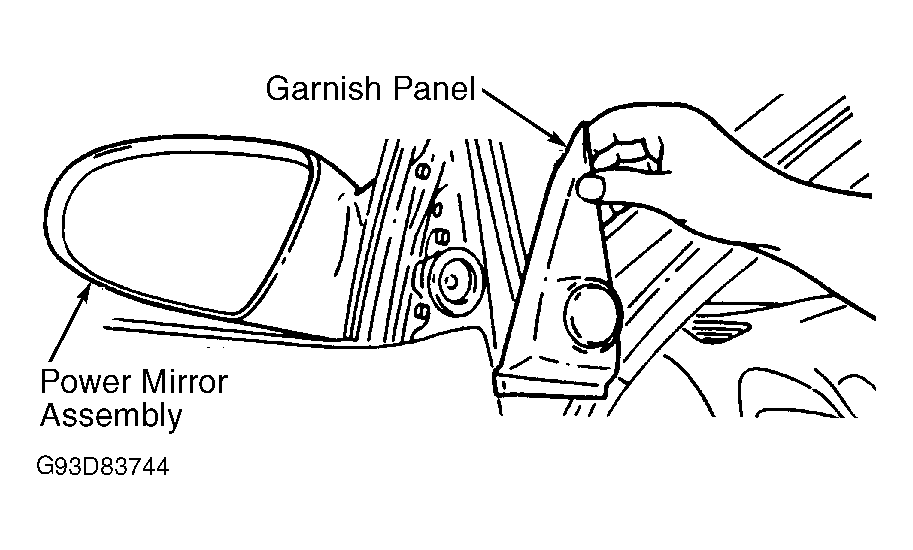

Disconnect negative battery cable. Remove mirror mount garnish panel from door. See Fig 1 . Remove door trim panel. Unplug power mirror harness connector. Remove 3 mirror mounting bolts. Remove mirror. To install, reverse removal procedure. Tighten mirror mounting bolts to 11 ft. lbs. (15 N.m).
