Test C: Scan Tool Will Not Communicate With Center Sensor Assembly Or Cruise Control Module
Test C: Scan Tool Will Not Communicate With Center Sensor Assembly Or Cruise Control Module
For testing procedure, refer to flowchart. See
Fig 1
.

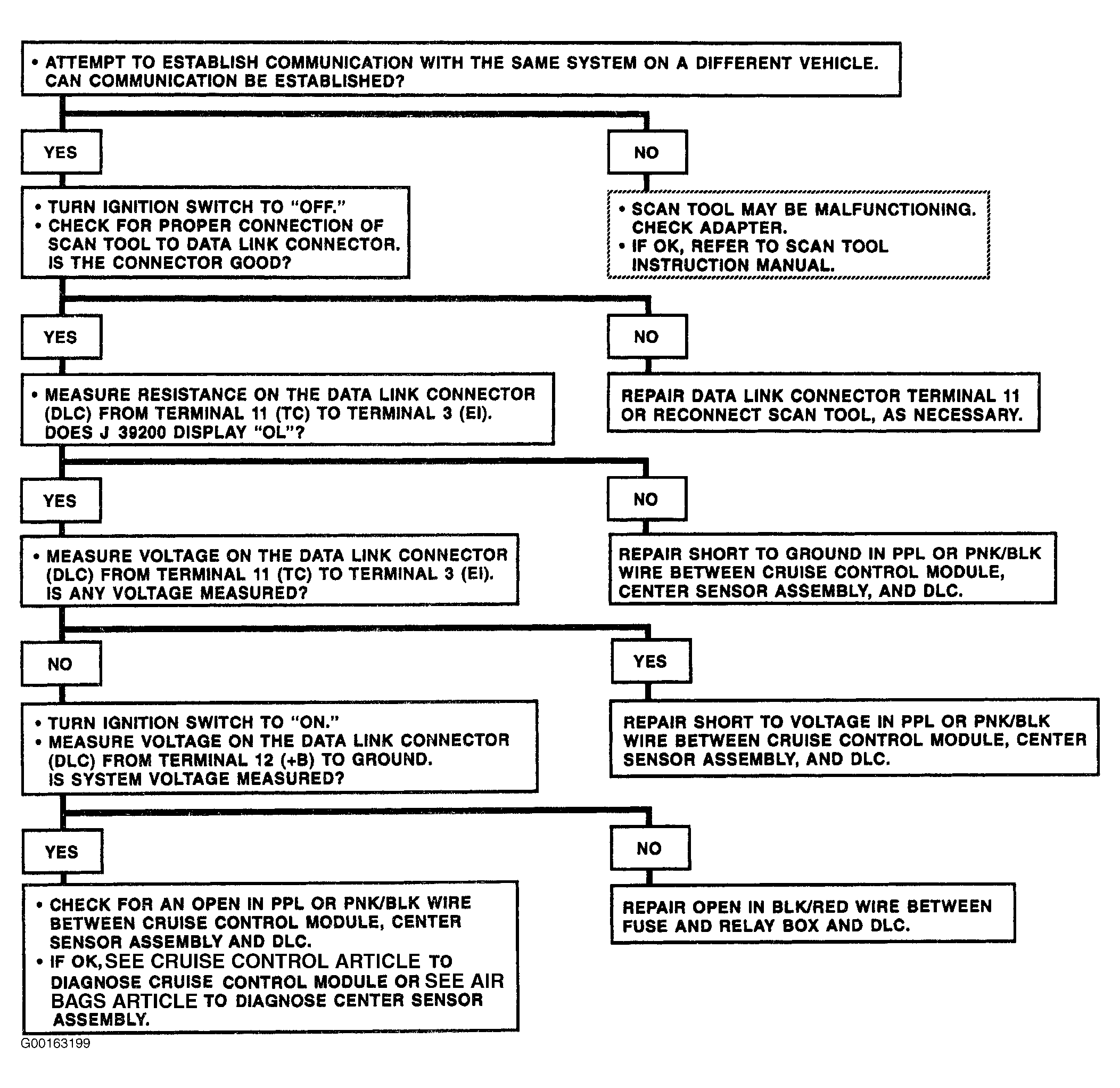

Fig 1: Test C: Scan Tool Will Not Communicate With Center Sensor Assembly Or Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
